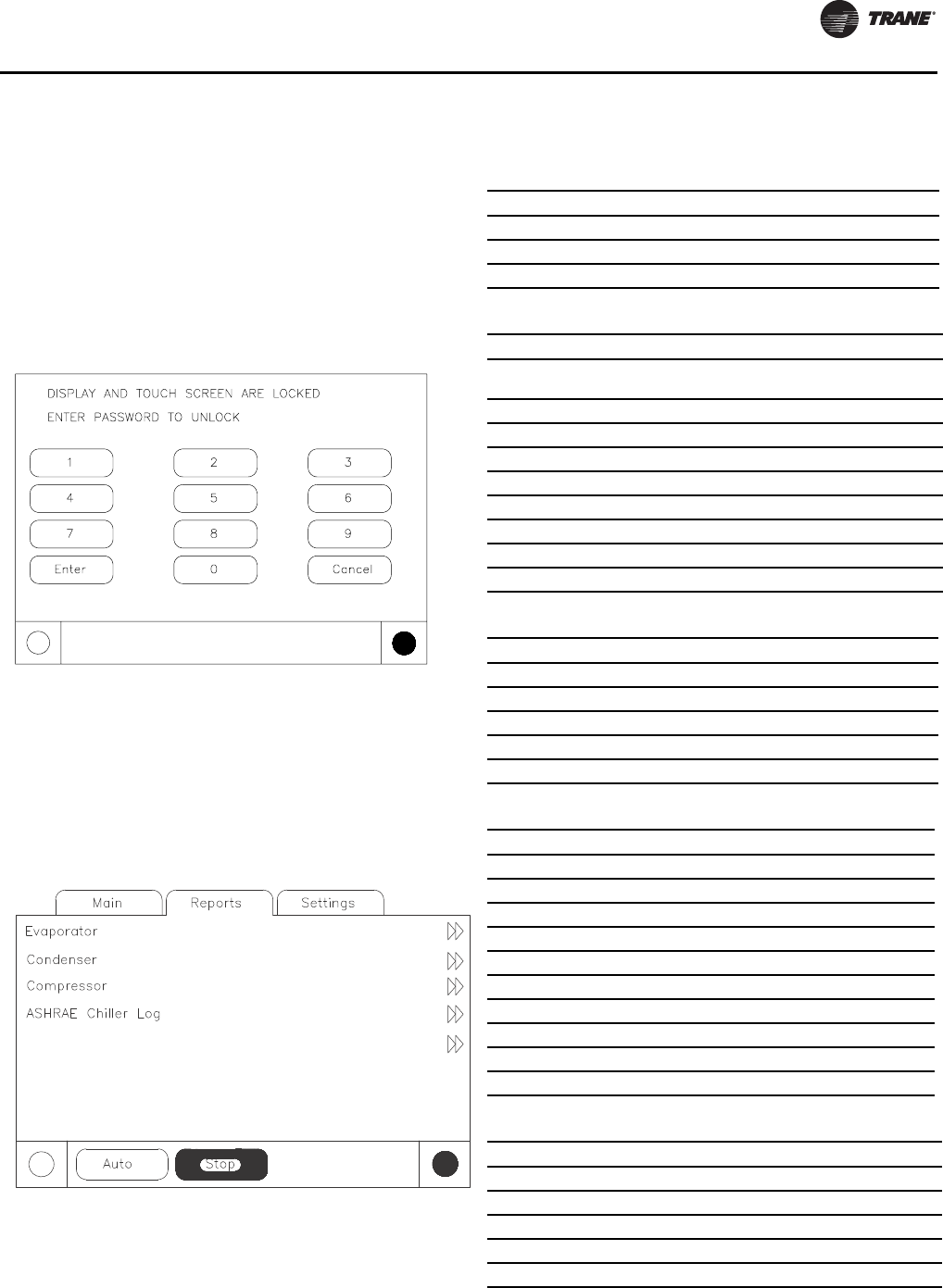

Lockout Screen
The DynaView Display andTouch Screen Lock screen is
shown.This screen is used if the Display andTouch Screen
Lock feature is Enabled.Thirty minutes after the last key
stroke this screen will be displayed and the Display and
Touch Screen will be locked out until “159 Enter” is
entered.
Until the proper password is entered there will be no
access to the DynaView screens including all reports, all
setpoints, and Auto/Stop/Alarms/Interlocks.The
password “159” is not programmable from either
DynaView orTechView.
If the Display andTouch Screen Lock feature is Disabled, a
similar screen including “Enter 159 to Unlock” will show if
the MP temperature is approximately less than 32°F (0°C)
and it has been 30 minutes after the last key stroke.
Reports
The Reports tab will allow a user to select from a list of
possible reports headings (i.e. Custom, ASHRAE Chiller
Log, Refrigerant, etc.) Each report will generate a list of
status items as defined in the tables that follow:
Historic Diagnostics
Table 114. Report name: system evaporator
Description Resolution Units
Evap Entering Water Temp: + or - XXX.X Temperature
Evap Leaving Water Temp: + or - XXX.X Temperature
Evap Water Flow Switch Status: Flow, No Flow Enumeration
Figure 53. Report name: circuit evaporator
Description Resolution Units
Evap Entering Water
Temperature
+/- XXX.X Temperature
Evap Leaving Water Temperature +/- XXX.X Temperature
Evap Sat Rfgt Temp +/- XXX.X Temperature
Suction Pressure XXX.X Pressure
Evap Approach Temp: +/- XXX.X Temperature
Evap Water Flow Switch Status (Flow, No Flow) Enum
Expansion Valve Position XXX.X %
Expansion Valve Position Steps XXXX Steps
Evaporator Liquid Level XX.X Height
Table 115. Report name: system condenser
Description Resolution Units
Cond Entering Water Temp +/- XXX.X Temperature
Cond Leaving Water Temp +/- XXX.X Temperature
Cond Water Flow Switch Status (Flow, No Flow) Enum
Outdoor Air Temperature +/- XXX.X Temperature
Cond Head Pressure Ctrol XXX %
Table 116. Report name: circuit condenser
Description Resolution Units
Cond Entering Water Temp +/- XXX.X Temperature
Cond Leaving Water Temp +/- XXX.X Temperature
Condenser Air Flow XXX %
Cond Inverter Speed XXX %
Outdoor Air Temperature +/- XXX.X Temperature
Cond Water Flow Switch Status (Flow, No Flow) Enum
Cond Sat Rfgt Temp +/- XXX.X Temperature
Cond Rfgt Pressure XXX.X Pressure
Differential Pressure XXX.X Pressure
Cond Approach Temp +/- XXX.X Temperature
Table 117. Report name: system compressor
Description Resolution Units
Average Line Current XXX %RLA
Unit Volts XXX Volts
Unit Running Time XXXX:XX hr:min
Power Demand kW
Power Demand Time Period min
