Controls Interface
142 RLC-SVX09H-EN

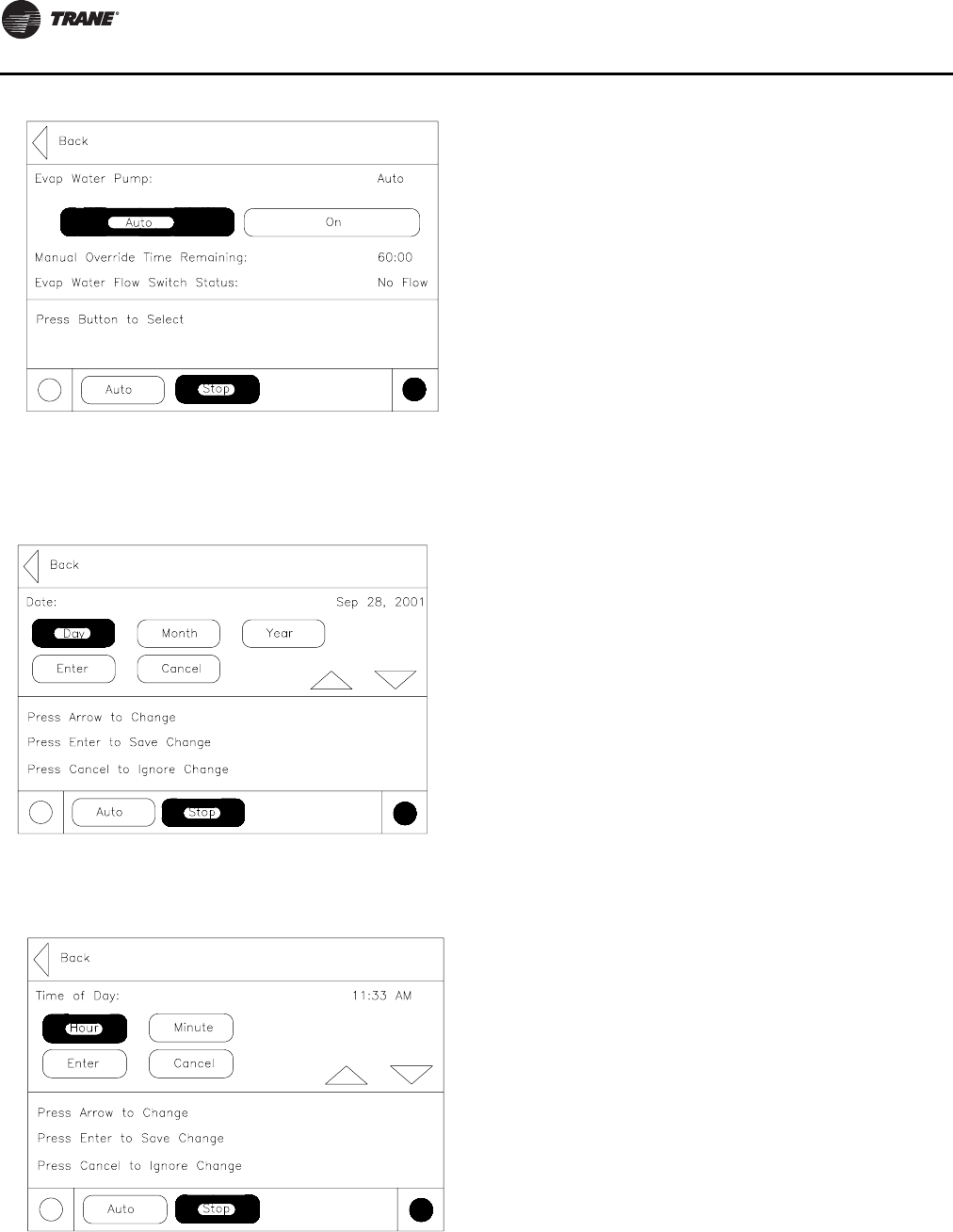

Mode Override for Enumerated Settings is shown below:
Date/Time Subscreen
The setpoint screen for setting up the CH530 date is shown
below:The user must select Day, Month, orYear and then
use the up/down arrows to adjust.
The setpoint screen for setting up the CH530 time with a 12
hour format is shown below:The user must select Hour or
Minute and then use the up/down arrows to adjust.
Adjusting hours will also adjust am/pm.
