Use and Care Manual

CONNECTION
It is recommended that you ensure that there is adequate height to install the unit. The
trailer should be high enough that, when the frame is level, there is enough space for
the unit to be at least one inch off the ground once attached to the bracket. If there is
not enough space, adjust the placement of the bracket on your trailer frame.

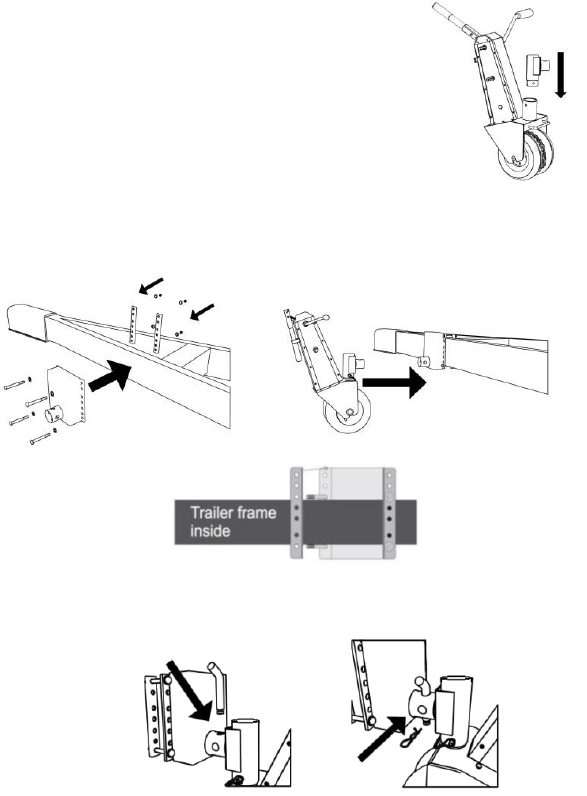

Fit the mounting joint into the rotating coupler on
your XL and secure with the rotation/security pin.
This joint replaces your XL’s ball adapter.
Place the mounting bracket and clamps onto the area of the frame you have designated
and secure with the four bolts. NOTE: While it is recommended that the bracket is
installed with the attachment point in the low position for stability reasons, the bracket
can be flipped prior to install if the space is required.
Place the connection point of the mounting joint into the mount bracket and fasten with
the included stow/clevis pin. Lastly, set the cotter pin through the stow/clevis pin.
The Trailer Valet mounting bracket comes with a security bolt (part 7) that is an option
to secure the device. This will add stability if needed, but may slow the process of
attaching and detaching the unit from your trailer. If you choose to use it, the bolt slots
through the back of the mounting bracket and threads into the mounting joint.
