Data Sheet

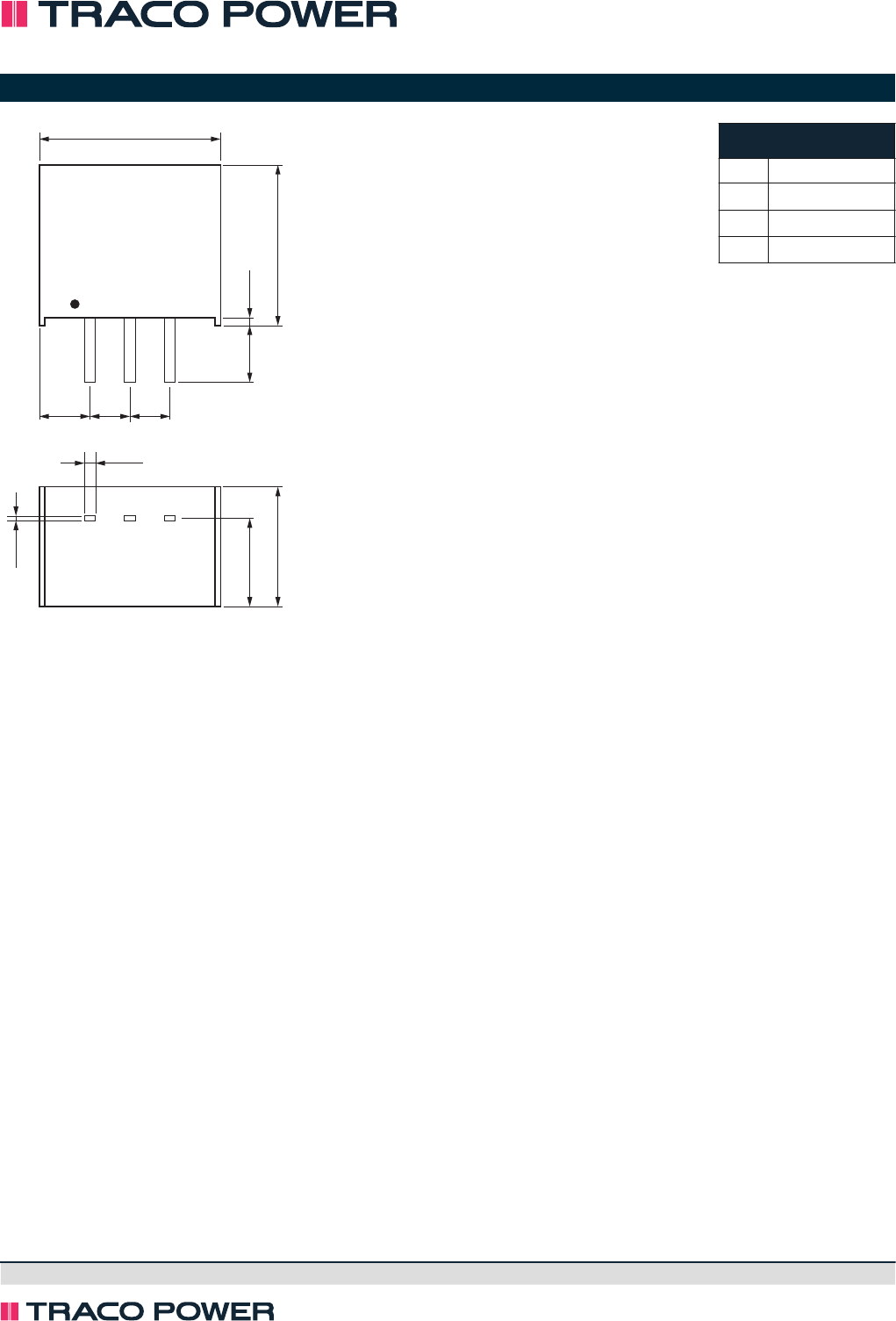

Outline Dimensions
TSR 1E Series, 1 A
Dimensions in mm (inch)
Tolerances: x.x
±0.5 (±0.02)
x.xx ±0.25 (±0.01)
0.5
(0.02)
10.2
(0.40)
4.1
(0.16)
2.54
(0.1)
2.54
(0.1)
11.6
(0.46)
1 2 3
0.5
(0.02)
5.45
(0.21)
7.5
(0.30)
Bottom view
0.3
(0.01)
3.26
(0.13)
Pinout
Pin Function
1
+Vin
2
GND
3
+Vout
