Non-Isolated DC/DC Converter (POL)

TSR 1E Series, 1 A

•

Highly cost efficient design

•

Pin compatible with LMxx linear

regulators

•

Operation temperature. range –40°C to

+85°C

•

Efficiency up to 92%

•

Wide input operating range 6-36 VDC

•

Short circuit protection

•

Excellent line / load regulation

•

3-year product warranty

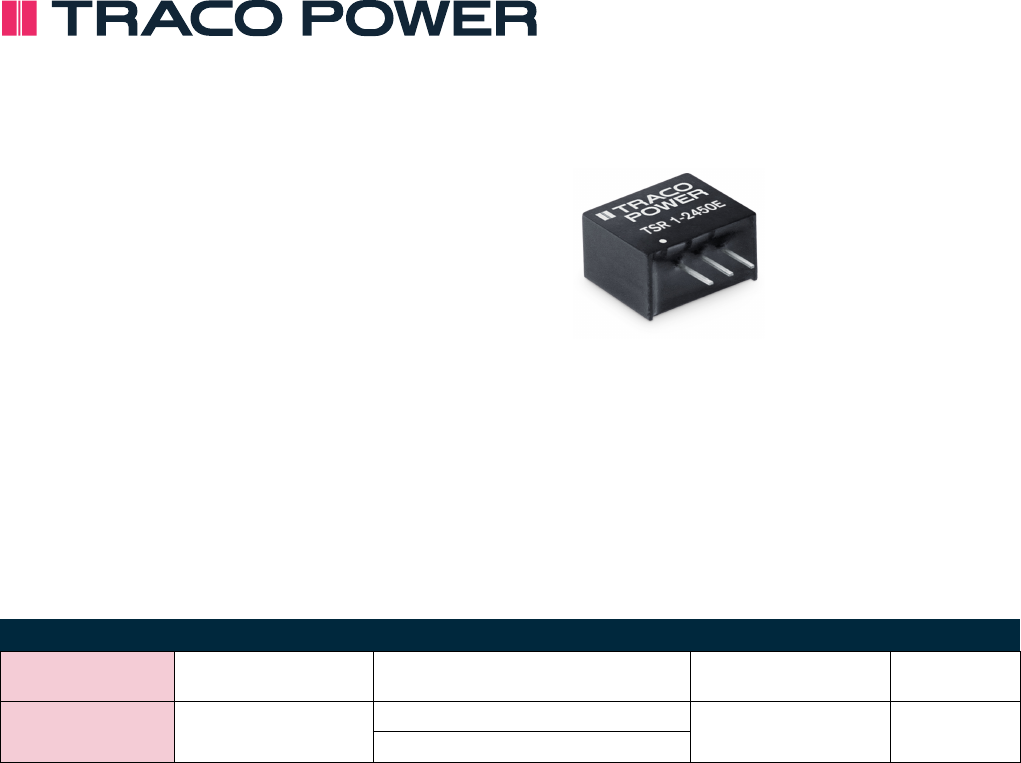

The TSR 1E is a 1 Ampere step-down switching regulator series and a drop-in

replacement for inefficient 78xx linear regulators. This series comes in a stan-

dard plastic SIP-3 case and complements our existing POL portfolio with a se-

ries focusing strongly on a cost efficient design while maintaining our quality

standards. The effective design allows full load operation up to +60°C ambient

temperature without the need of any heat sink or forced cooling. The TSR 1E

switching regulators provide other significant features over linear regulators, i.-

e. better output accuracy, lower standby current and no requirement of external

capacitors. The TSR 1E series offers a broad application range in many envi-

ronments and is especially suited for high volume projects where the series will

help to reduce production cost by delivering not only a highly cost efficient but

also reliable solution.

Models

Order Code

Output Current

max.

Input Voltage

Range

Output Voltage

nom.

Efficiency

typ.

TSR 1-2433E

1'000 mA

6 - 36 VDC (24 VDC nom.)

3.3 VDC

88 %

TSR 1-2450E

7 - 36 VDC (24 VDC nom.)

5 VDC

92 %

www.tracopower.com

May 25, 2020

Page 1 / 3
