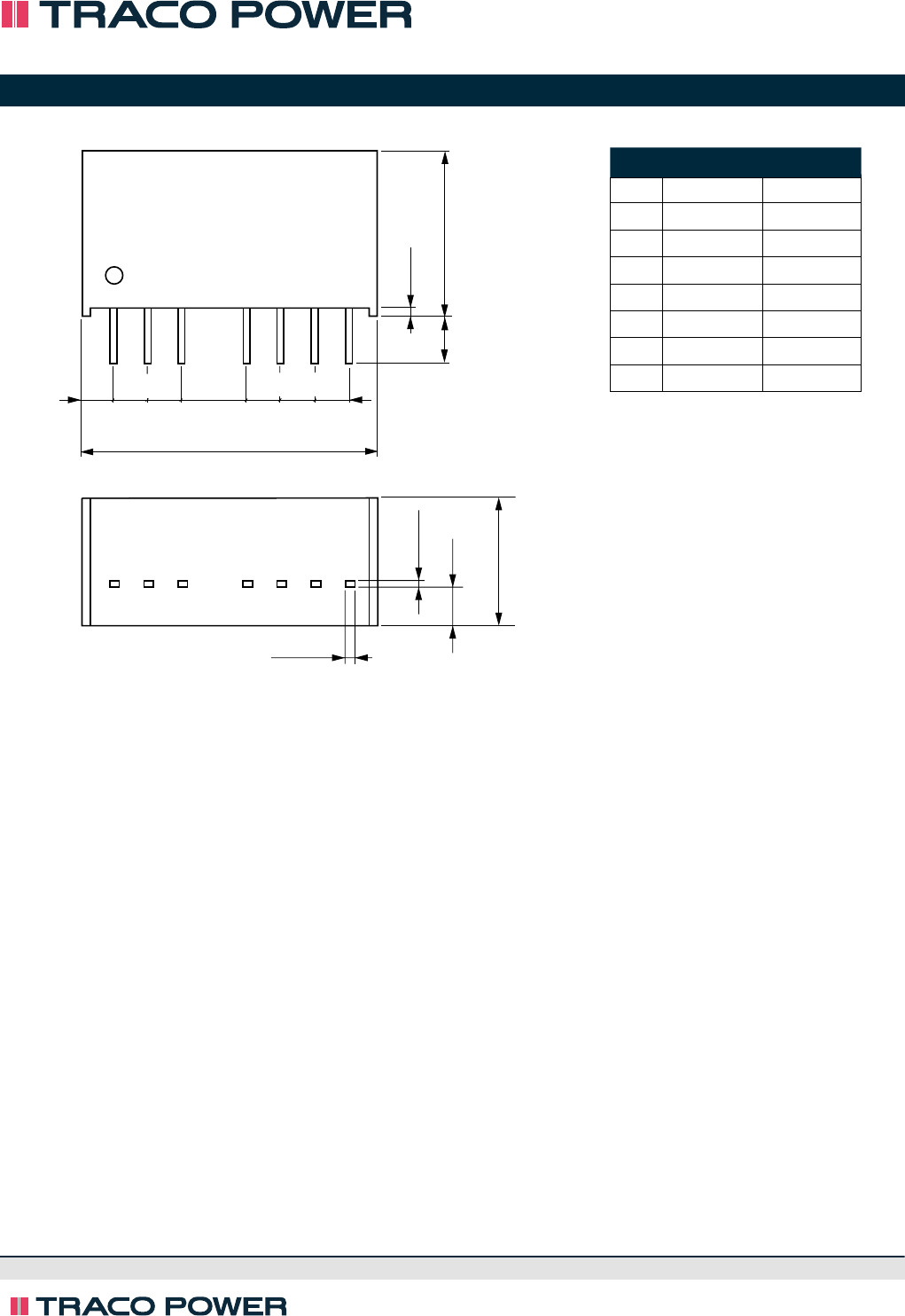

Outline Dimensions
Pin Single Dual
1
–Vin (GND) –Vin (GND)
2
+Vin (VCC) +Vin (VCC)
3
On/Off On/Off
5
NC NC
6
+Vout +Vout
7
–Vout Common
8
NC –Vout
Pin-Out
Dimensions in [mm], () = Inch
Tolerances: x.xx ±0.5 (±0.02)
Pin pitch tolerances ±0.25 (±0.01)
Pin dimension tolerance ±0.1 (±0.004)
bottom view
3.2
(0.13)
0.5 (0.02)
0.25
(0.01)
2.0
21.8
5.08
3 x 2.54
0.5
(0.02)
11.2
(0.44)
(3 x 0.1)(0.08) (0.2)
4.1
2 x 2.54
(2 x 0.1)
(0.86)
(0.16)
9.1
(0.36)
1235678
NC: not connected
