www.tracopower.com Page 1 of 4

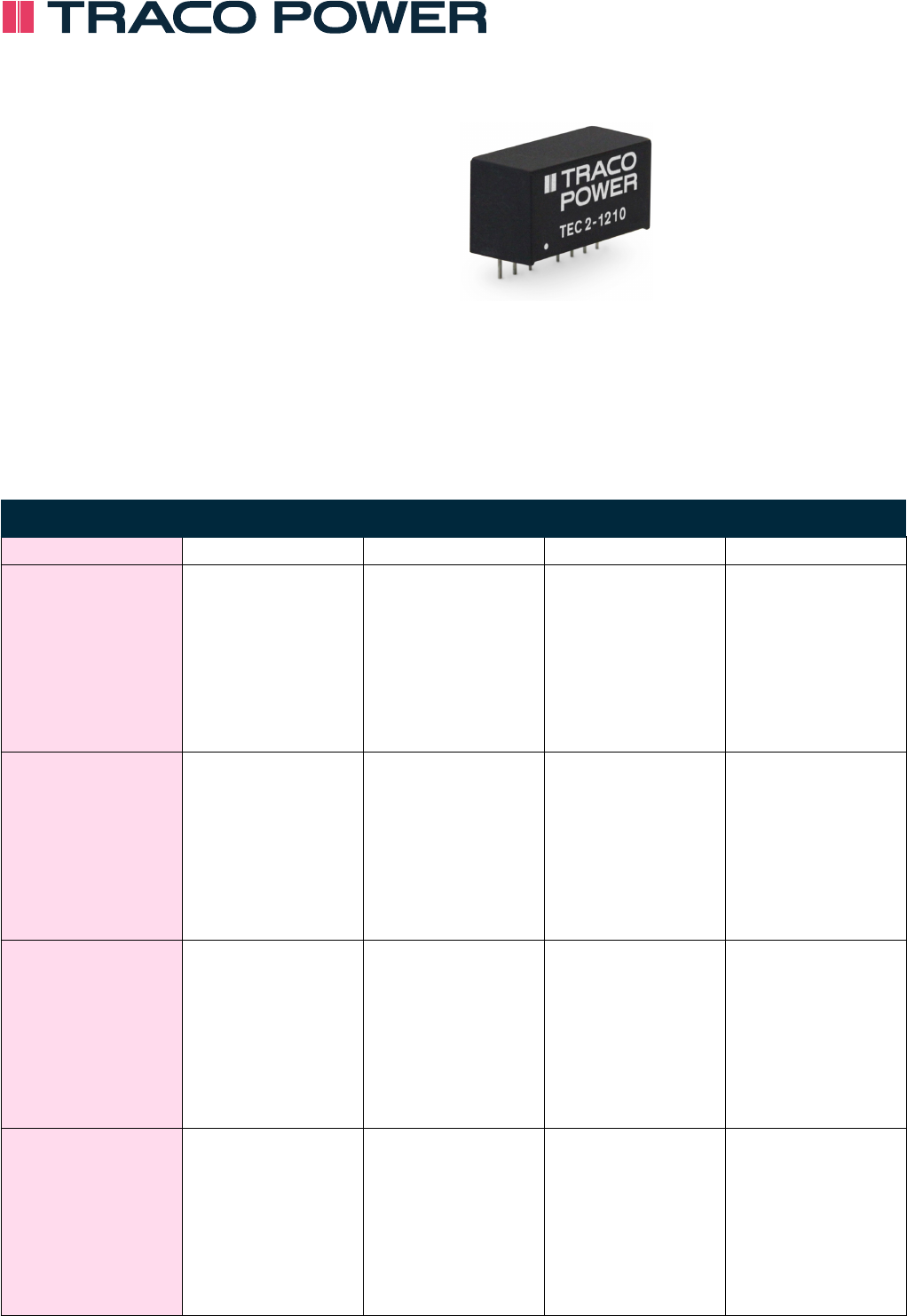

DC/DC Converter TEC 2 Series, 2 Watt
Models
TEC 2 is a new series with the design purpose to improve the prevalent 2 Watt SIP-8 DC/DC con-
verters in terms of cost, efficiency and performance. The latest technology and components en-
able an increase in efficiency by more than 20%. With the reduction of thermal loss, the operating
temperature range can be expanded from -40°C to +95°C. The converters are fully regulated over
0 - 100% load (no minimum load is required). The low input range is extended from 4.5 to 13.2 VDC
while models are also available with the standard 2:1 input ranges of 9-18, 18-36 and 36-75 VDC
(see TEC 2WI series for 4:1 input ranges). The functional I/O-isolation system is designed to meet
IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Order code Input voltage Output voltage Output current max. Efficiency typ.
TEC 2-0910
3.3 VDC 500 mA 78 %
TEC 2-0911
5.0 VDC 400 mA 81 %
TEC 2-0919
9.0 VDC 222 mA 84 %
TEC 2-0912
12 VDC 167 mA 84 %
TEC 2-0913
4.5 – 13.2 VDC
15 VDC 134 mA 84 %
TEC 2-0915
(9 VDC nominal) 24 VDC 83 mA 85 %
TEC 2-0921
±5.0 VDC ±200 mA 81 %
TEC 2-0922
±12 VDC ±83 mA 85 %
TEC 2-0923
±15 VDC ±67 mA 84 %
TEC 2-1210
3.3 VDC 500 mA 78 %
TEC 2-1211
5.0 VDC 400 mA 82 %
TEC 2-1219
9.0 VDC 222 mA 84 %
TEC 2-1212
12 VDC 167 mA 85 %
TEC 2-1213
9 – 18 VDC
15 VDC 134 mA 85 %
TEC 2-1215
(12 VDC nominal) 24 VDC 83 mA 85 %
TEC 2-1221
±5.0 VDC ±200 mA 82 %
TEC 2-1222
±12 VDC ±83 mA 85 %
TEC 2-1223
±15 VDC ±67 mA 84 %
TEC 2-2410
3.3 VDC 500 mA 78 %
TEC 2-2411
5.0 VDC 400 mA 83 %
TEC 2-2419
9.0 VDC 222 mA 85 %
TEC 2-2412
12 VDC 167 mA 86 %
TEC 2-2413
18 – 36 VDC
15 VDC 134 mA 85 %
TEC 2-2415
(24 VDC nominal) 24 VDC 83 mA 85 %
TEC 2-2421
±5.0 VDC ±200 mA 83 %
TEC 2-2422
±12 VDC ±83 mA 85 %
TEC 2-2423
±15 VDC ±67 mA 86 %
TEC 2-4810
3.3 VDC 500 mA 76 %
TEC 2-4811
5.0 VDC 400 mA 80 %
TEC 2-4819
9.0 VDC 222 mA 82 %
TEC 2-4812
12 VDC 167 mA 84 %
TEC 2-4813
36 – 75 VDC
15 VDC 134 mA 85 %
TEC 2-4815
(48 VDC nominal) 24 VDC 83 mA 85 %
TEC 2-4821
±5.0 VDC ±200 mA 80 %
TEC 2-4822
±12 VDC ±83 mA 85 %
TEC 2-4823
±15 VDC ±67 mA 83 %
Models
• Compact SIP-8 package
• I/O-isolation voltage 1‘600 VDC
• Fully regulated outputs
• Operating temperature range
–40°C to +95°C
• Short circuit protection
• Remote On/Off
• 3-year product warranty
• Designed to meet
UL 62368-1 (UL 60950-1)
