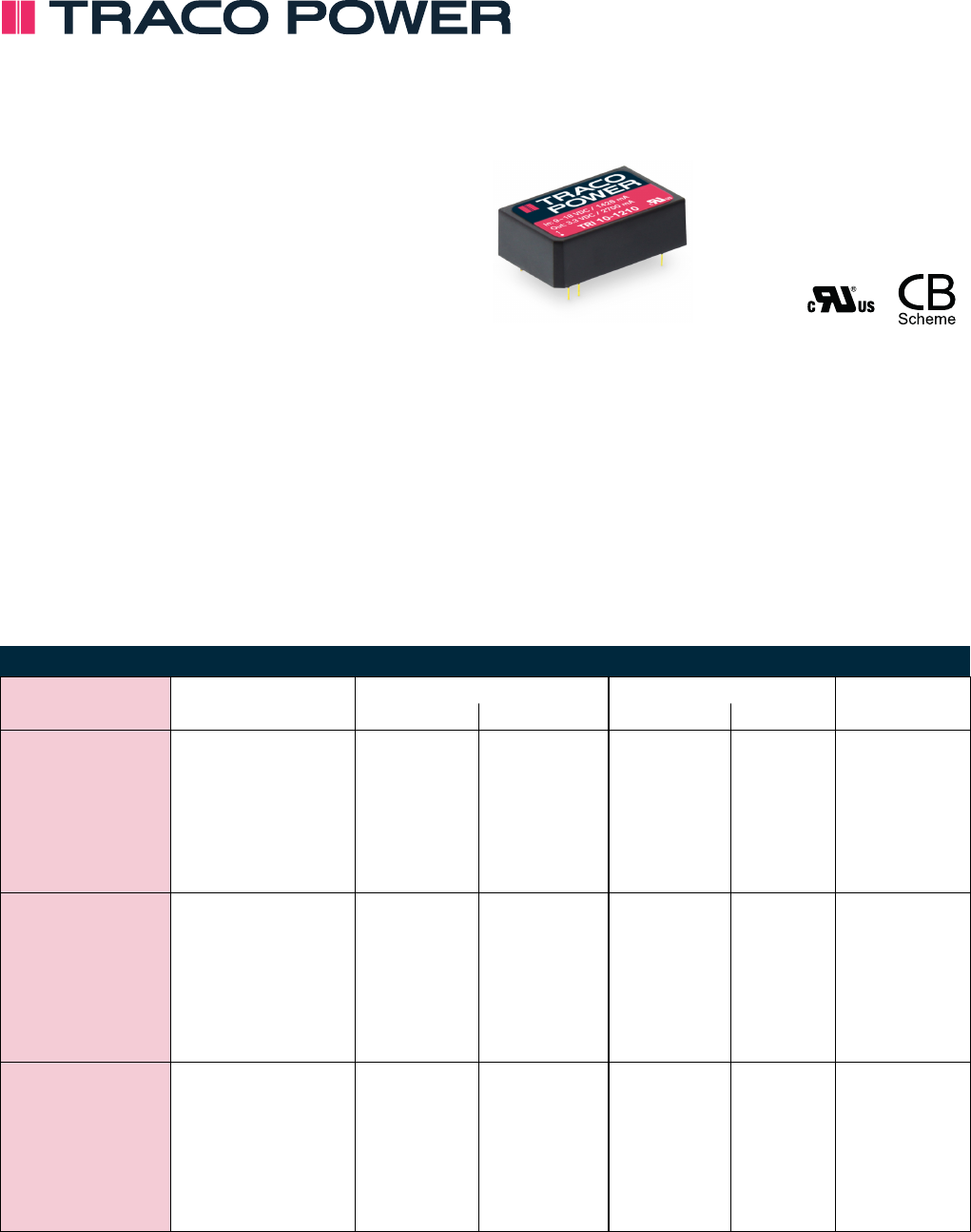

DC/DC Converter
TRI 10 Series, 10 Watt
•
Reinforced I/O-isolation 7071 VDC
rated for 1000 VAC working voltage
•
Ultra-high isolation peak voltage 9000
VDC (1s)
•
Common Mode Transient Immunity
(dv/dt) 15 kV/µs
•
Operating temperature range -40 to
+85°C
•
Low no-load power consumption 144 –
288 mW
•
Internal EN 55032 class A filter
•
High efficiency up to 88%
•
2:1 input voltage range: 9-18, 18-36,
36-75 VDC
•
Protection against overload, overvoltage
and short circuit
•
3-year product warranty
IEC 62368-1
UL 62368-1
The new TRI 10 is a high isolation, regulated 10 Watt DC/DC converter series
which comes in a compact DIP-24 package. The core characteristic of the TRI
10 series is a sophisticated reinforced isolation system which is able to with-
stand high test voltages (9000 VDC for 1s and 7071 VDC for 60s) and working
voltages (1000 VACrms). Complementing this isolation characteristic is a high
Common Mode Transient Immunity of 15 kV/µs. The new design allows to fully
integrate an EN 55032 class A filter and greatly reduces the no-load power
consumption. High efficiencies up to 88% allow safe operation from –40°C to
+65°C without derating and up to +85°C with derating. All models have a wide
2:1 input voltage range and precisely regulated, isolated output voltages. With
the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI 10 series is the
perfect choice for many demanding applications in the industrial, transportation
and instrumentation sectors.
Models
Order Code
Output 1
Output 2
Efficiency
Vnom
Imax
Vnom
Imax
typ.
TRI 10-1210
3.3 VDC
2'700 mA
81 %
TRI 10-1211
5.1 VDC
2'000 mA
83 %
TRI 10-1212
12 VDC
833 mA
86 %
TRI 10-1213
15 VDC
666 mA
88 %
TRI 10-1215
24 VDC
416 mA
88 %
TRI 10-1222
+12 VDC
416 mA
–12 VDC
416 mA
88 %
TRI 10-1223
+15 VDC
333 mA
–15 VDC
333 mA
87 %
TRI 10-2410
3.3 VDC
2'700 mA
81 %
TRI 10-2411
5.1 VDC
2'000 mA
84 %
TRI 10-2412
12 VDC
833 mA
87 %
TRI 10-2413
15 VDC
666 mA
88 %
TRI 10-2415
24 VDC
416 mA
88 %
TRI 10-2422
+12 VDC
416 mA
–12 VDC
416 mA
88 %
TRI 10-2423
+15 VDC
333 mA
–15 VDC
333 mA
87 %
TRI 10-4810
3.3 VDC
2'700 mA
81 %
TRI 10-4811
5.1 VDC
2'000 mA
84 %
TRI 10-4812
12 VDC
833 mA
87 %
TRI 10-4813
15 VDC
666 mA
88 %
TRI 10-4815
24 VDC
416 mA
87 %
TRI 10-4822
+12 VDC
416 mA
–12 VDC
416 mA
87 %
TRI 10-4823
+15 VDC
333 mA
–15 VDC
333 mA
87 %
www.tracopower.com
June 25, 2019
Page 1 / 4
