12W, Single and Dual Output

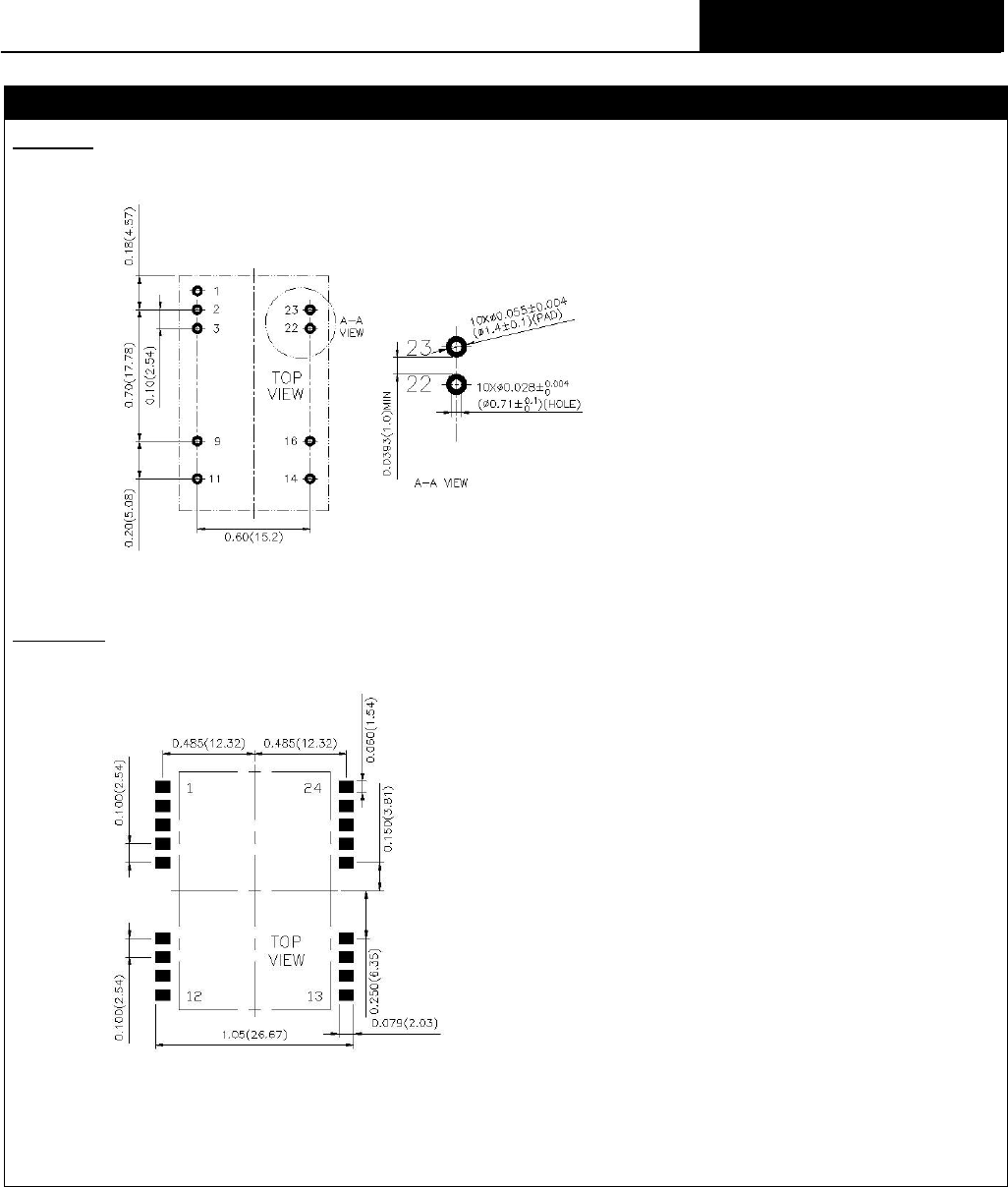

Recommended Pad Layout
DIP TYPE
SMD TYPE
1. All dimensions in Inches (mm)
2. Pin pitch tolerance: ±0.35mm
3. Tolerance: x.xx ±0.02 (x.x ±0.5)
x.xxx ±0.01 (x.xx ±0.25)
