12W, Single and Dual Output
Remote ON/OFF Control
The positive logic remote ON/OFF control circuit is included.
Turns the module ON during a logic High on the On/Off pin and turns OFF during a logic Low.
The On/Off pin is an open collector/drain logic input signal (Von/off) that referenced to GND.
If not using the remote on/off feature, please open circuit between on/off pin and –input pin to turn the module on.

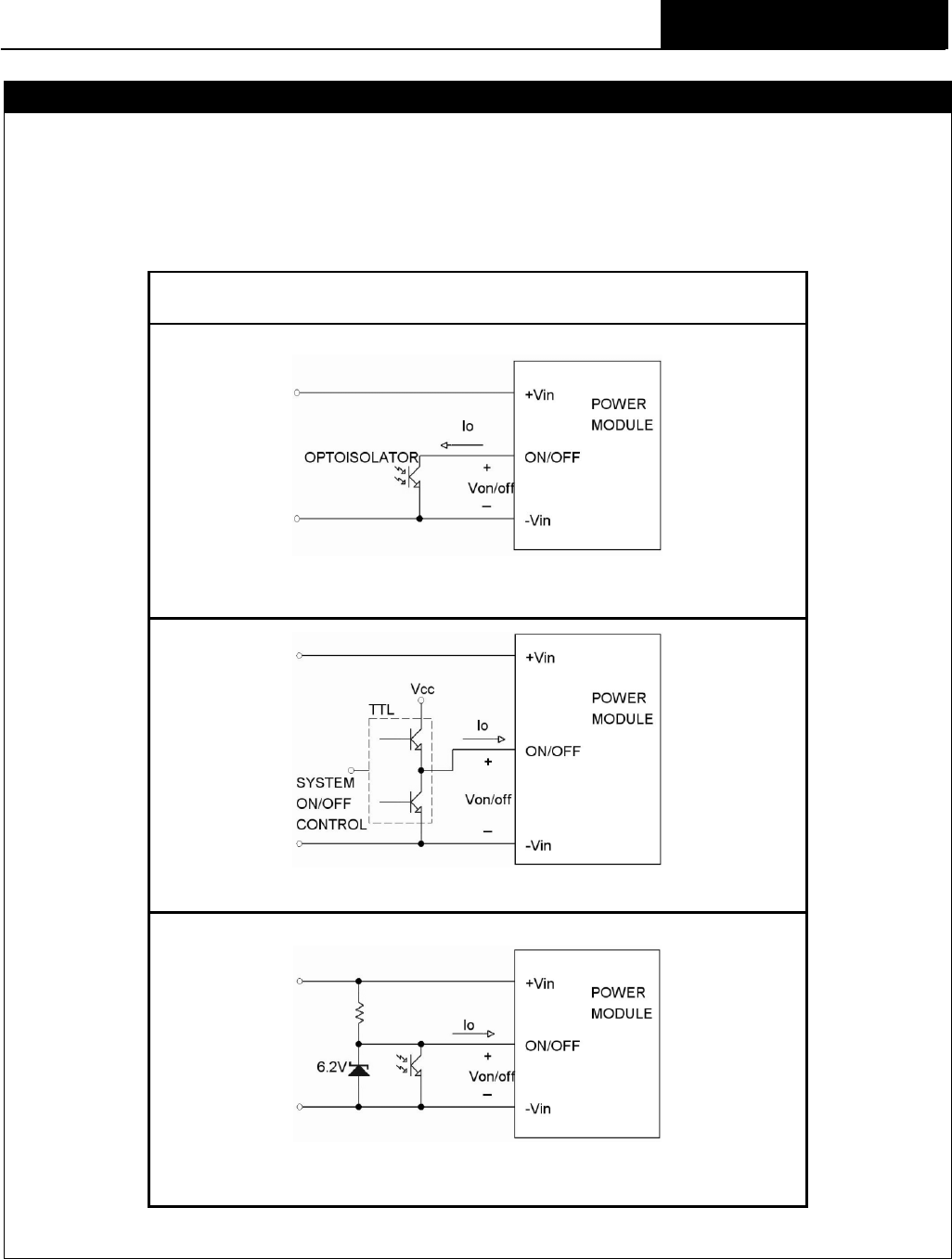

Remote ON/OFF Implementation
Isolated-Closure Remote ON/OFF
Level Control Using TTL Output
Level Control Using Line Voltage
