12W, Single and Dual Output
Testing Configurations

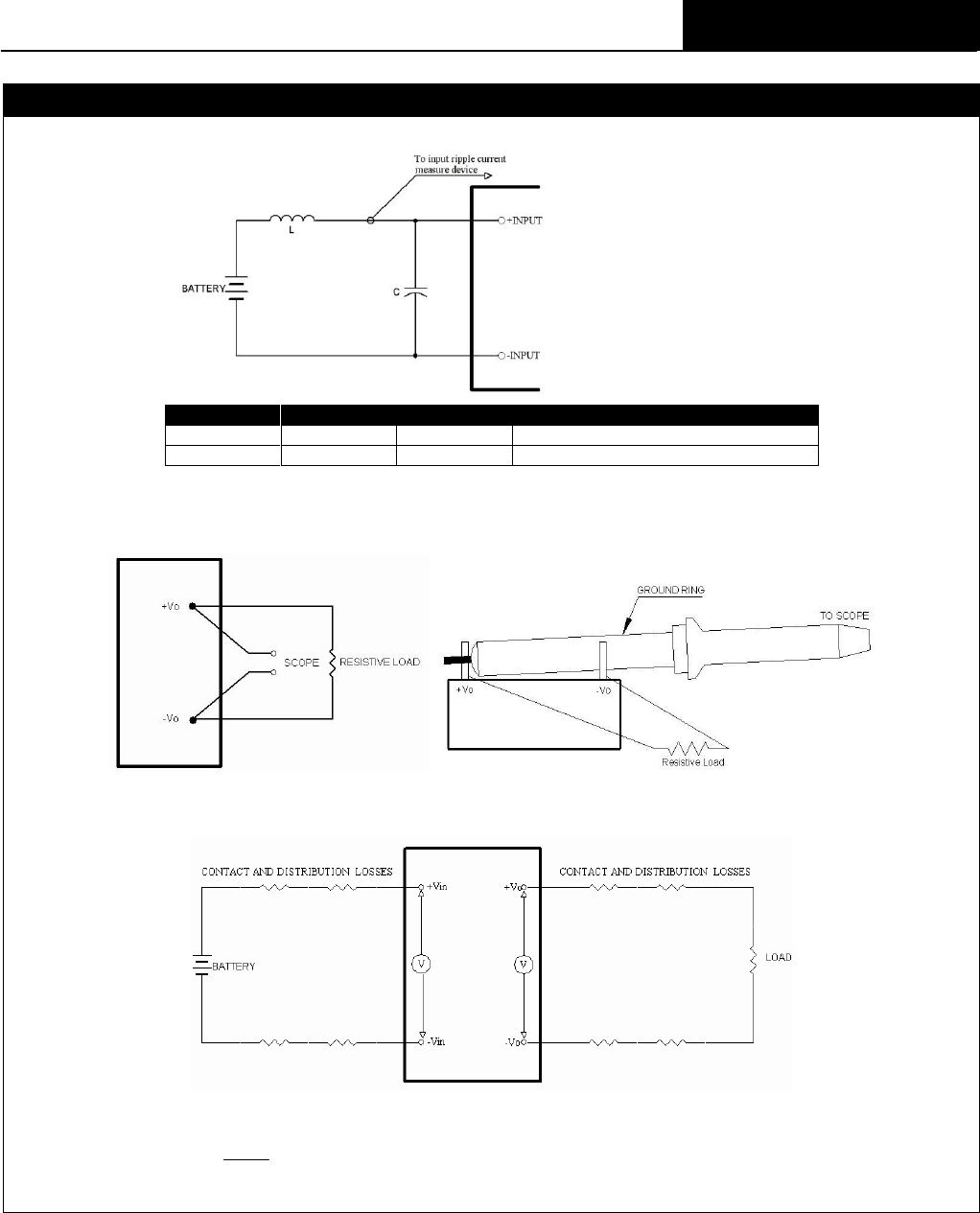

Input reflected-ripple current measurement test up
Component
Value
Voltage
Reference
L
12μH
----
----
C
47μF
100V
Aluminum Electrolytic Capacitor
Peak-to-peak output ripple & noise measurement test up
Output voltage and efficiency measurement test up
Note: All measurements are taken at the module terminals.
%100











inin
oo
IV
IV
Efficiency
