Created by Traco Electronic AG Arp.

www.tracopower.com

Date: May 22, 2018 / Rev.: 1.0 /

Page 1 / 63

Features

 RoHS compliant

 Single output up to 3.5A

 Dual output up to ±1200mA

 Standard 24 PIN DIP and SMD Package

 Five-sided continuous shield

 No minimum load required

 High power density

 High efficiency up to 88%

 Small size 31.820.310.4 mm (1.250.80.450 inch)

 Input to output isolation (1500VDC for 60 seconds)

 2:1 wide input voltage range

 Fixed switching frequency

 Input under-voltage protection

 Output over-voltage protection

 Over-current protection

 Output short circuit protection

 Remote on/off

Applications

 Distributed power architectures

 Workstations

 Computer equipment

 Communications equipment

THD 12 Series Application Note

DC/DC Converter 9 to 18 Vdc, 18 to 36 Vdc and 36 to 75Vdc Input

2.5 to 15Vdc Single Outputs and ±5 to ±15 Vdc Dual Outputs, 12W

E188913

Complete THD 12 datasheet can be downloaded at:

http://www.tracopower.com/products/thd12.pdf

General Description

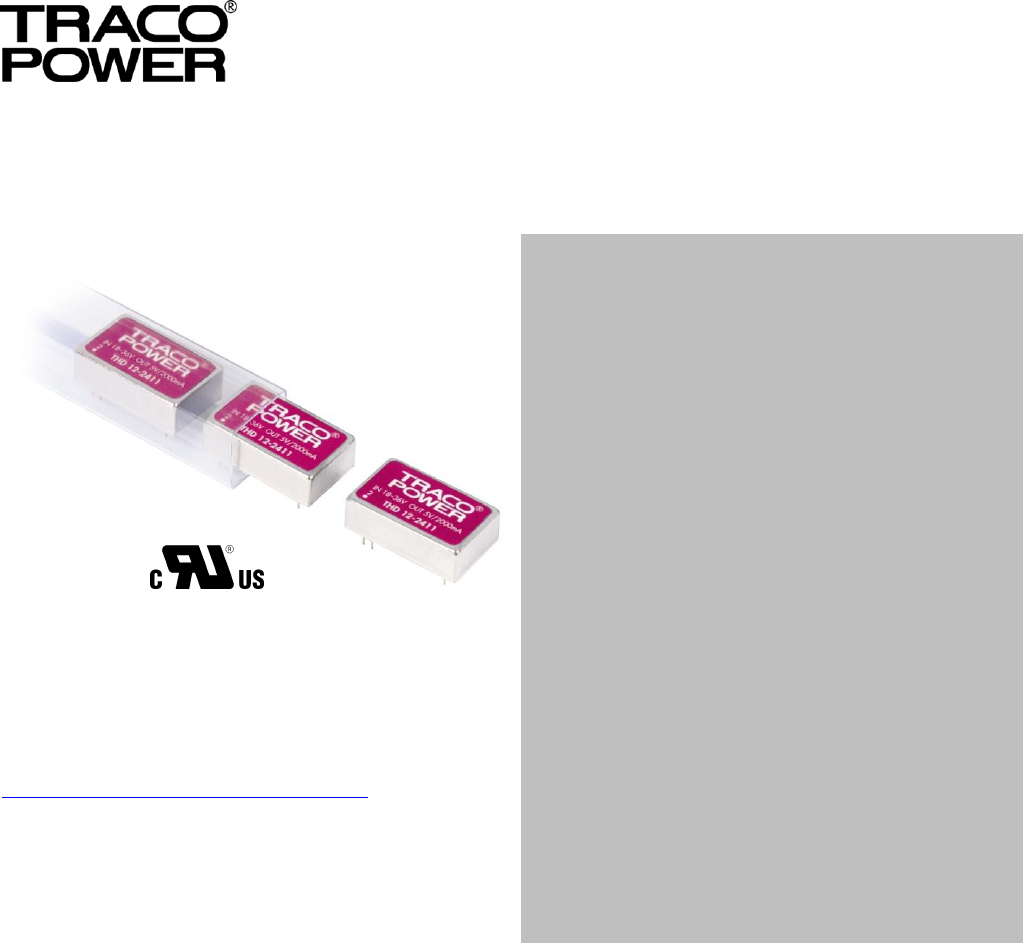

The THD 12 series offer 12 watts of output power from a package in an IC compatible 24pin DIP. This product has a 2:1 wide

input voltage of 9-18Vdc, 18-36Vdc, 36-75Vdc with an I/O isolation test voltage of 1500Vdc and indefinite short-circuit protection,

as well as five sided shielding. All models are particularly suited to telecommunications, industrial, mobile telecom and test

equipment applications.

Table of contents

Absolute Maximum Rating

Thermal Consideration

P57

Output Specification

P2 – P3

Remote ON/OFF Control

P58

Input Specification

P3 – P4

Mechanical Data

P59

General Specification

Recommended Pad Layout

P60

Characteristic Curves

P6 – P53

Soldering and Reflow Consideration

P61 & P62

Test Configurations

P54

Packaging Information

P62

EMC Considerations

P55 & P56

Part Number Structure

P63

Input Source Impedance

P57

Safety and Installation Instruction

P63

Output Over Current Protection

P57

MTBF and Reliability

P63

Output Over Voltage Protection

P57

Summary of content (63 pages)

PAGE 1
THD 12 Series Application Note DC/DC Converter 9 to 18 Vdc, 18 to 36 Vdc and 36 to 75Vdc Input 2.5 to 15Vdc Single Outputs and ±5 to ±15 Vdc Dual Outputs, 12W Features  RoHS compliant                Single output up to 3.5A Dual output up to ±1200mA Standard 24 PIN DIP and SMD Package Five-sided continuous shield No minimum load required High power density High efficiency up to 88% Small size 31.820.310.4 mm (1.250.80.
PAGE 2
Application Note 12W, Single and Dual Output Absolute Maximum Rating Parameter Model THD 12-12xx THD 12-24xx THD 12-48xx THD 12-12xx THD 12-24xx THD 12-48xx Input Voltage Continuous Input Voltage Transient (100ms) Input Voltage Variation (complies with EST300 132 part 4.
PAGE 3
Application Note 12W, Single and Dual Output Output Specification (continue) Parameter Output Over Voltage Protection (Single output only) (Zener diode clamp) Output Over Current Protection Output Short Circuit Protection Model THD 12-xx09 THD 12-xx10 THD 12-xx11 THD 12-xx12 THD 12-xx13 All All Min Typ Max Unit 3.9 3.9 6.2 Vdc 15 18 150 % FL.
PAGE 4
Application Note 12W, Single and Dual Output Input Specification (continue) Parameter Input Standby current (Typical value at Vin = Vin nom; No Load) Model THD 12-1209 THD 12-1210 THD 12-1211 THD 12-1212 THD 12-1213 THD 12-1221 THD 12-1222 THD 12-1223 Min THD 12-2409 THD 12-2410 THD 12-2411 THD 12-2412 THD 12-2413 THD 12-2421 THD 12-2422 THD 12-2423 THD 12-4809 Under Voltage Lockout Turn-on Threshold Under Voltage Lockout Turn-off Threshold Input reflected ripple current (5 to 20MHz, 12μH source imp
PAGE 5
Application Note 12W, Single and Dual Output General Specification Parameter Efficiency (Vin = Vin nom; Full Load; TA = 25°C) Model THD 12-1209 THD 12-1210 THD 12-1211 THD 12-1212 THD 12-1213 THD 12-1221 THD 12-1222 THD 12-1223 Min 83 85 87 87 87 83 88 88 83 85 87 87 87 83 88 88 THD 12-4809 THD 12-4810 THD 12-4811 THD 12-4812 THD 12-4813 THD 12-4821 THD 12-4822 THD 12-4823 Created by Traco Electronic AG Arp. All All All All All All www.tracopower.
PAGE 6
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1209 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 7
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1209 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 8
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1210 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 9
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1210 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 10
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1211 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 11
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1211 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 12
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1212 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 13
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1212 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 14
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1213 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 15
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1213 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 16
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1221 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 17
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1221 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 18
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1222 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 19
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1222 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 20
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1223 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 21
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-1223 (Continued) Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 22
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2409 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 23
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2409 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 24
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2410 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 25
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2410 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 26
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2411 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 27
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2411 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 28
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2412 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 29
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2412 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 30
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2413 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 31
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2413 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 32
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2421 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 33
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2421 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 34
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2422 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 35
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2422 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 36
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2423 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 37
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-2423 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 38
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4809 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 39
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4809 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 40
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4810 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 41
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4810 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 42
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4811 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 43
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4811 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 44
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4812 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 45
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4812 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 46
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4813 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 47
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4813 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 48
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4821 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 49
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4821 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 50
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4822 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 51
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4822 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 52
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4823 Efficiency versus Output Current Typical Output Ripple and Noise. Vin = Vin nom, Full Load Efficiency versus Input Voltage. Full Load Derating Output Current versus Ambient Temperature and Airflow Vin = Vin nom Created by Traco Electronic AG Arp. www.tracopower.
PAGE 53
Application Note 12W, Single and Dual Output Characteristic Curves All test conditions are at 25°C. The figures are identical for THD 12-4823 (Continued) Conduction Emission of EN55022 Class A Vin = Vin nom, Full Load Using ON/OFF Voltage Start-Up and Vout Rise Characteristic Vin = Vin nom, Full Load Conduction Emission of EN55022 Class B Vin = Vin nom, Full Load Power Dissipation versus Output Current Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 54
Application Note 12W, Single and Dual Output Testing Configurations Input reflected-ripple current measurement test up Component L C Value 12μH 47μF Voltage ---100V Reference ---Aluminum Electrolytic Capacitor Peak-to-peak output ripple & noise measurement test up Output voltage and efficiency measurement test up Note: All measurements are taken at the module terminals.  V  Io Efficiency   o  Vin  I in Created by Traco Electronic AG Arp.    100%  www.tracopower.
PAGE 55
Application Note 12W, Single and Dual Output EMC considerations Suggested Schematic to comply with EN55022 Conducted Emission Class A recommended track layout with input filter for Single Output recommended track layout with input filter for Dual Output To comply with conducted emissions according to EN55022 CLASS A following components are recommended: THD 12-12xx Component C1 C2, C3 Value 6.8µF 1000pF Voltage 50V 2KV 1210 MLCC 1206 MLCC THD 12-24xx Component C1 C2, C3 Value 4.
PAGE 56
Application Note 12W, Single and Dual Output EMC considerations (Continued) Suggested Schematic to comply with EN55022 Conducted Emission Class B recommended track layout with input filter for Single Output recommended track layout with input filter for Dual Output To comply with conducted emissions according to EN55022 CLASS A following components are recommended: THD 12-12xx Component C1 C3, C4 L1 Value 3.
PAGE 57
Application Note 12W, Single and Dual Output Input Source Impedance The power module should be connected to a low impedance input source. Highly inductive source impedance can affect the stability of the power module. Input external L-C filter is recommended to minimize input reflected ripple current. The inductor is simulated source impedance of 12μH and capacitor is Nippon Chemi-Con KZE series 47μF/100V.
PAGE 58
Application Note 12W, Single and Dual Output Remote ON/OFF Control The positive logic remote ON/OFF control circuit is included. Turns the module ON during a logic High on the On/Off pin and turns OFF during a logic Low. The On/Off pin is an open collector/drain logic input signal (Von/off) that referenced to GND. If not using the remote on/off feature, please open circuit between on/off pin and –input pin to turn the module on.
PAGE 59
Application Note 12W, Single and Dual Output Mechanical Data DIP TYPE Pin size is 0.02(0.5) Dia or 0.01 x 0.02 (0.25 x 0.50) Rectangular Pin PIN CONNECTION 0.08(2.0) 1.25 (31.8) BOTTOM VIEW 16 9 14 11 0.15 (3.8) 0.60(15.2) 1 2 3 9 11 14 16 22 23 0.20 (5.1) 0.80 (20.3) 23 22 Single Output Define PIN 1 2 3 0.40 (10.
PAGE 60
Application Note 12W, Single and Dual Output Recommended Pad Layout DIP TYPE SMD TYPE 1. All dimensions in Inches (mm) 2. Pin pitch tolerance: ±0.35mm 3. Tolerance: x.xx ±0.02 (x.x ±0.5) x.xxx ±0.01 (x.xx ±0.25) Created by Traco Electronic AG Arp. www.tracopower.com Date: May 22, 2018 / Rev.: 1.
PAGE 61
Application Note 12W, Single and Dual Output Soldering and Reflow Considerations Lead free wave solder profile for THD 12 DIP type Zone Preheat zone Actual heating Reference Solder: Reference Parameter Rise temperature speed: 3°C/ sec max. Preheat temperature: 100~130°C Peak temperature: 250~260°C Peak time (T1+T2 time): 4~6 sec Sn-Ag-Cu; Sn-Cu Hand Welding: Soldering iron: Power 90W Welding Time: 2~4 sec Temperature: 380~400°C Created by Traco Electronic AG Arp. www.tracopower.
PAGE 62
Application Note 12W, Single and Dual Output Soldering and Reflow Considerations (Continued) Lead free reflow profile for THD 12 SMD type Zone Preheat zone Actual heating Cooling Reference Solder: Reference Parameter Rise temperature speed: 1~3°C / sec Preheat time: 60~120°C Preheat temperature: 155~185°C Rise temperature speed: 1~3°C / sec Melting time: 30~60 sec Melting temperature: 217°C Peak temperature: 230~240°C Peak time: 10~20 sec Rise temperature speed: -1~-5°C / sec Sn-Ag-Cu; Sn-Cu Packagi
PAGE 63
Application Note 12W, Single and Dual Output Order Code Model Number THD 12-1209 THD 12-1210 THD 12-1211 THD 12-1212 THD 12-1213 THD 12-1221 THD 12-1222 THD 12-1223 THD 12-2409 THD 12-2410 THD 12-2411 THD 12-2412 THD 12-2413 THD 12-2421 THD 12-2422 THD 12-2423 THD 12-4809 THD 12-4810 THD 12-4811 THD 12-4812 THD 12-4813 THD 12-4821 THD 12-4822 THD 12-4823 Input Range 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 9 – 18 Vdc 18 – 36 Vdc 18 – 36 Vdc 18 – 36 Vdc 18 – 36 Vdc 18
