Step Operation Description

5 Port Enable Required. On the VLAN→Protocol VLAN→Port Enable page, select

and enable Port 3, Port 4 and Port 5 for Protocol VLAN feature.

6 Create Protocol

VLAN 10

On VLAN→Protocol VLAN→Protocol VLAN page, create protocol

VLAN 10 with Protocol as IP.

7 Create Protocol

VLAN 20

On VLAN→Protocol VLAN→Protocol VLAN page, create protocol

VLAN 20 with Protocol as AppleTalk.

6.8 Application Example for Private VLAN

 Network Requirements

 Switch A is connecting to switch B, switch B is connecting to switch C;

 Switch B is connecting to PC1, PC2 and PC3;

 Switch C is connecting to PC4, PC5 and PC6;

 PCs in different VLANs cannot communicate with each other;;

 For switch A, packets from switch B and switch C have no VLAN tags. Switch A needs not

consider the VLANs of switch B and switch C;

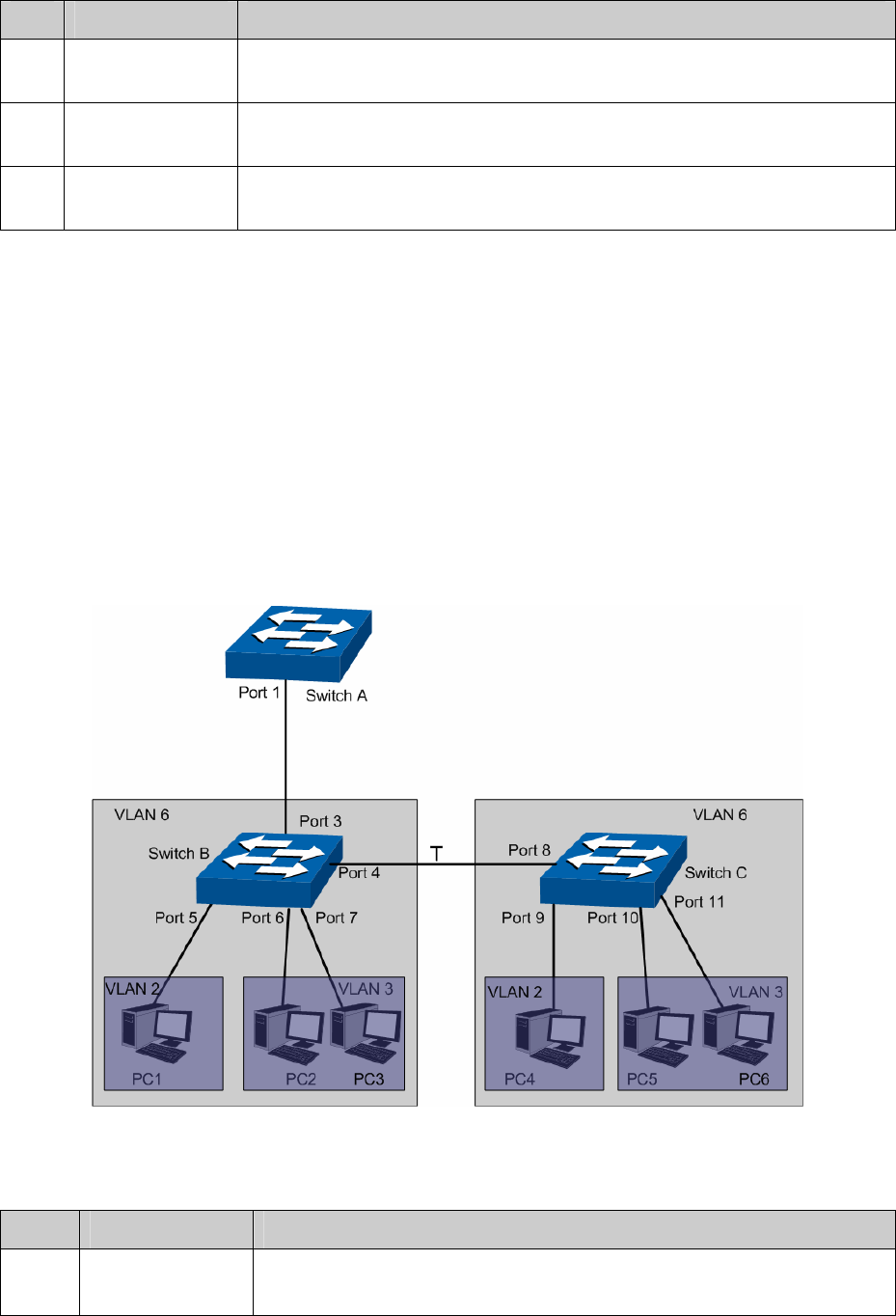

 Network Diagram

 Configuration Procedure

 Configure Switch A

Step Operation Description

1 Create VLAN6 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 6, owning Port 1.

 Configure Switch B
