o ensure the normal communication of the factory switch, the default VLAN of all ports is set to
VLAN1.
The following entries are displayed on this screen:
 VLAN Table
VLAN ID Select：
Click the Select button to quick-select the corresponding entry
based on the VLAN ID number you entered.
Select：
Select the desired entry to delete the corresponding VLAN. It is
multi-optional.
VLAN ID：
Displays the ID number of VLAN.
Name：
Displays the user-defined name of VLAN.
Members：
Displays the port members in the VLAN.
Operation：
Allows you to view or modify the information for each entry.
 Edit: Click to modify the settings of VLAN.
 Detail: Click to get the information of VLAN.
Click Edit button to modify the settings of the corresponding VLAN. Click Create button to create a
new VLAN.

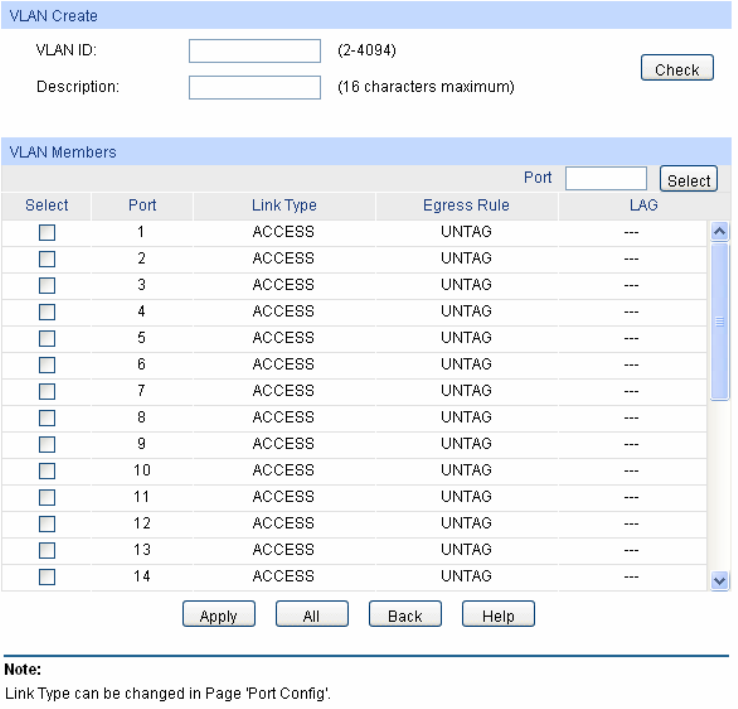

Figure 6-4 Create or Modify 802.1Q VLAN
The following entries are displayed on this screen:
