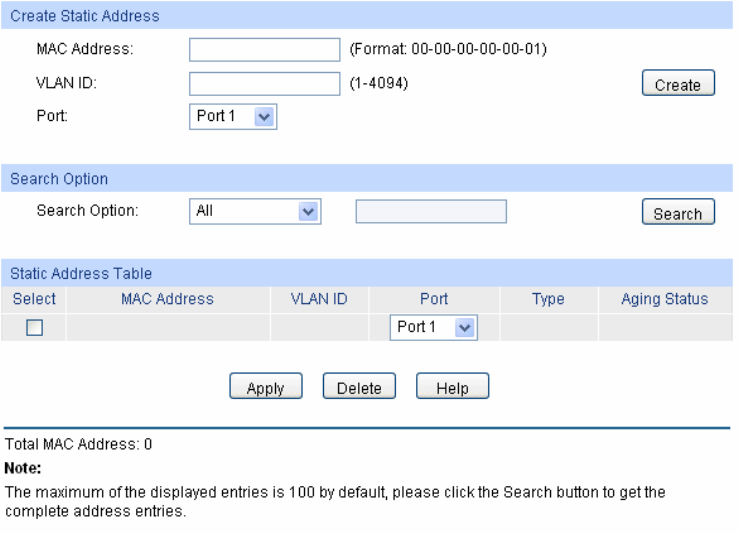

Figure 5-14 Static Address
The following entries are displayed on this screen:
 Create Static Address
MAC Address: Enter the static MAC Address to be bound.
VLAN ID: Enter the corresponding VLAN ID of the MAC address.
Port: Select a port from the pull-down list to be bound.
 Search Option
Search Option: Select a Search Option from the pull-down list and click the Search
button to find your desired entry in the Static Address Table.
 MAC: Enter the MAC address of your desired entry.
 VLAN ID: Enter the VLAN ID number of your desired entry.
 Port: Enter the Port number of your desired entry.
 Static Address Table
Select: Select the entry to delete or modify the corresponding port number. It
is multi-optional.
MAC Address: Displays the static MAC Address.
VLAN ID: Displays the corresponding VLAN ID of the MAC address.
Port: Displays the corresponding Port number of the MAC address. Here
you can modify the port number to which the MAC address is bound.
The new port should be in the same VLAN.
Type: Displays the Type of the MAC address.
Aging Status: Displays the Aging Status of the MAC address.
