User Guide

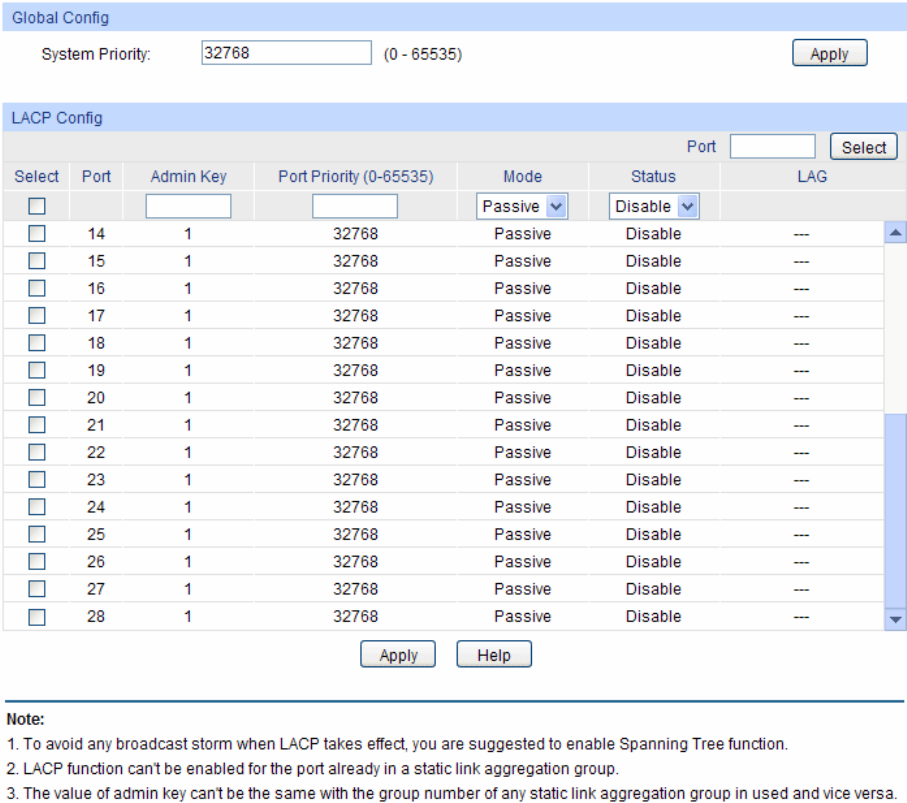

Figure 5-10 LACP Config
The following entries are displayed on this screen:
 Global Config
System Priority: Specify the system priority for the switch. The system priority and
MAC address constitute the system identification (ID). A lower system
priority value indicates a higher system priority. When exchanging
information between systems, the system with higher priority
determines which link aggregation a link belongs to, and the system
with lower priority adds the proper links to the link aggregation
according to the selection of its partner.
 LACP Config
Port Select: Click the Select button to quick-select the corresponding port based
on the port number you entered.
Select: Select the desired port for LACP configuration. It is multi-optional.
Port: Displays the port number.
Admin Key: Specify an Admin Key for the port. The member ports in a dynamic
aggregation group must have the same Admin Key.
42
