 Mirror Group List

Group: Displays the mirror group number.

Mirroring: Displays the mirroring port number.

Mode: Displays the mirror mode.

Mirrored Port: Displays the mirrored ports.

Operation: Click Edit to configure the mirror group.

Click Edit to display the following figure.

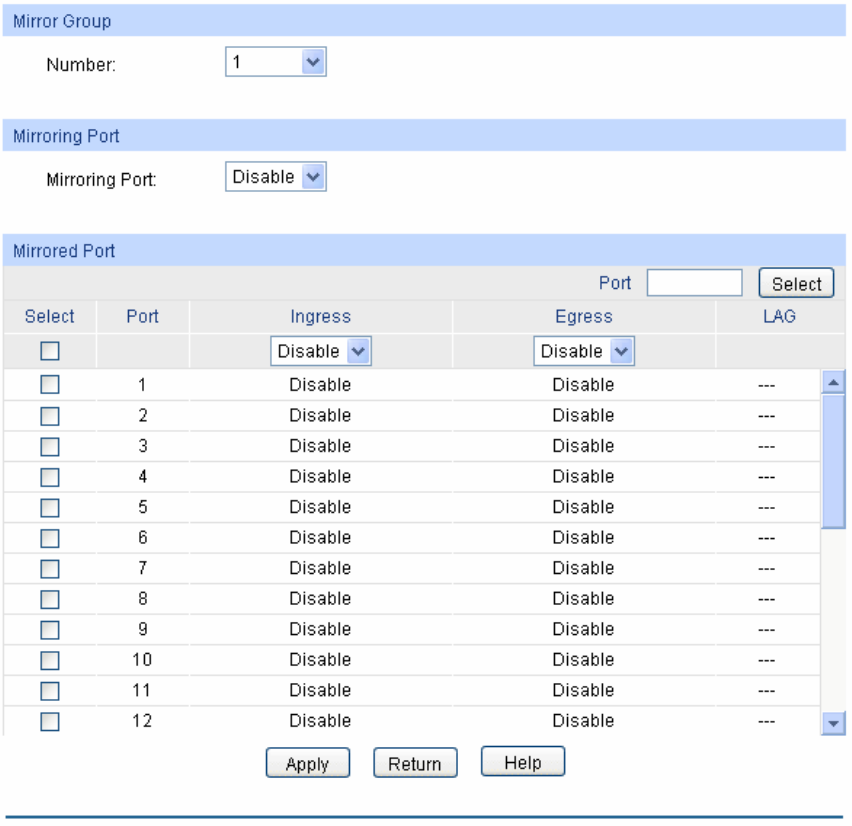

Figure 5-3 Port Mirror Config

The following entries are displayed on this screen.

 Mirror Group

Number: Select the mirror group number you want to configure.

 Mirroring Port

Mirroring Port: Select a port from the pull-down list as the mirroring port. When

Disable is selected, the Port Mirror feature will be disabled.
