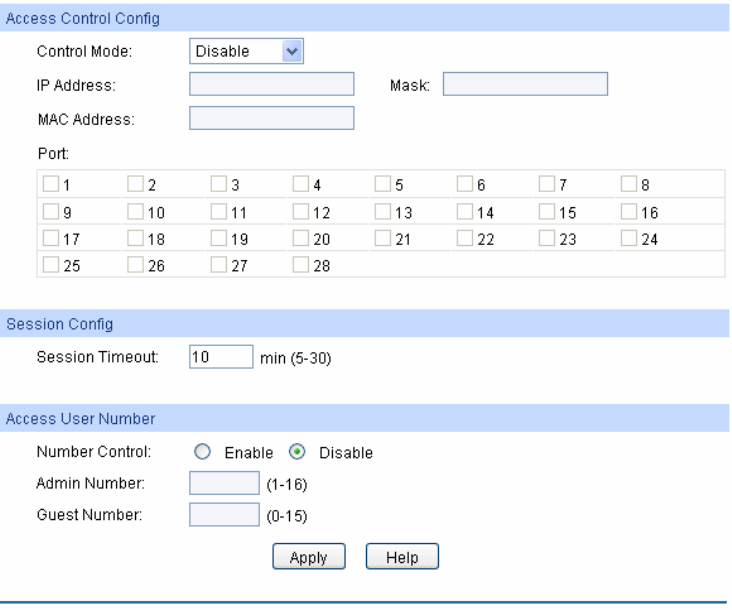

Figure 4-15 Access Control
The following entries are displayed on this screen:
 Access Control Config
Control Mode: Select the control mode for users to log on to the Web
management page.
 Disable：Disable the access control function.
 IP-based: Select this option to limit the IP-range of the users
for login.
 MAC-based: Select this option to limit the MAC Address of
the users for login.
 Port-based: Select this option to limit the ports for login.
IP Address&Mask：
These fields can be available for configuration only when
IP-based mode is selected. Only the users within the IP-range
you set here are allowed for login.
MAC Address: The field can be available for configuration only when MAC-based
mode is selected. Only the user with this MAC Address you set
here is allowed for login.
Port: The field can be available for configuration only when Port-based
mode is selected. Only the users connected to these ports you
set here are allowed for login.
 Session Config
Session Timeout: If you do nothing with the Web management page within the
timeout time, the system will log out automatically. If you want to
reconfigure, please login again.
