FAQ:

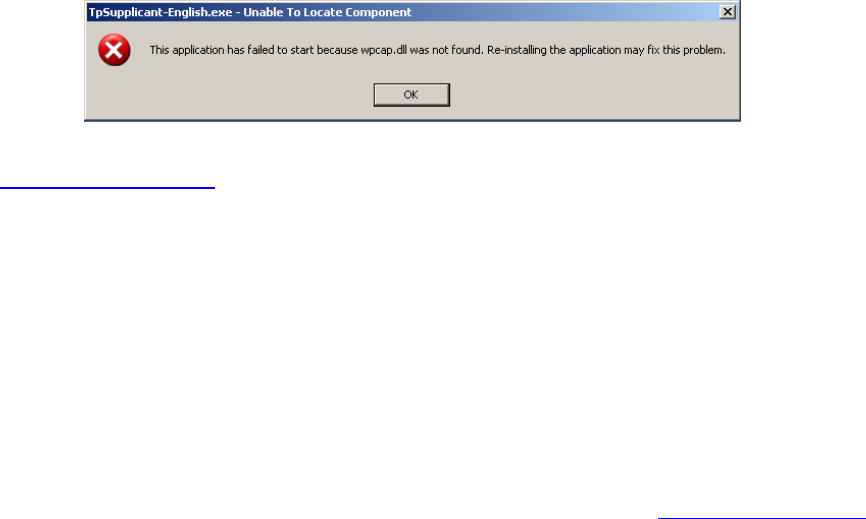

Q1: Why does this error dialog box pop up when starting up the TP-LINK 802.1X Client Software?

A1: It’s because the supported DLL file is missing. You are suggested to go to

http://www.winpcap.org

to download WinPcap 4.0.2 or the higher version for installation, and

run the client software again.

Q2: Is this TP-LINK 802.1X Client Software compliable with the switches of the other

manufacturers?

A2: No. This TP-LINK 802.1X Client Software is customized for TP-LINK switches.

Q3: Is it safe to set the password being automatically saved？

A3: Yes. The password saved in the configuration files is encrypted.
