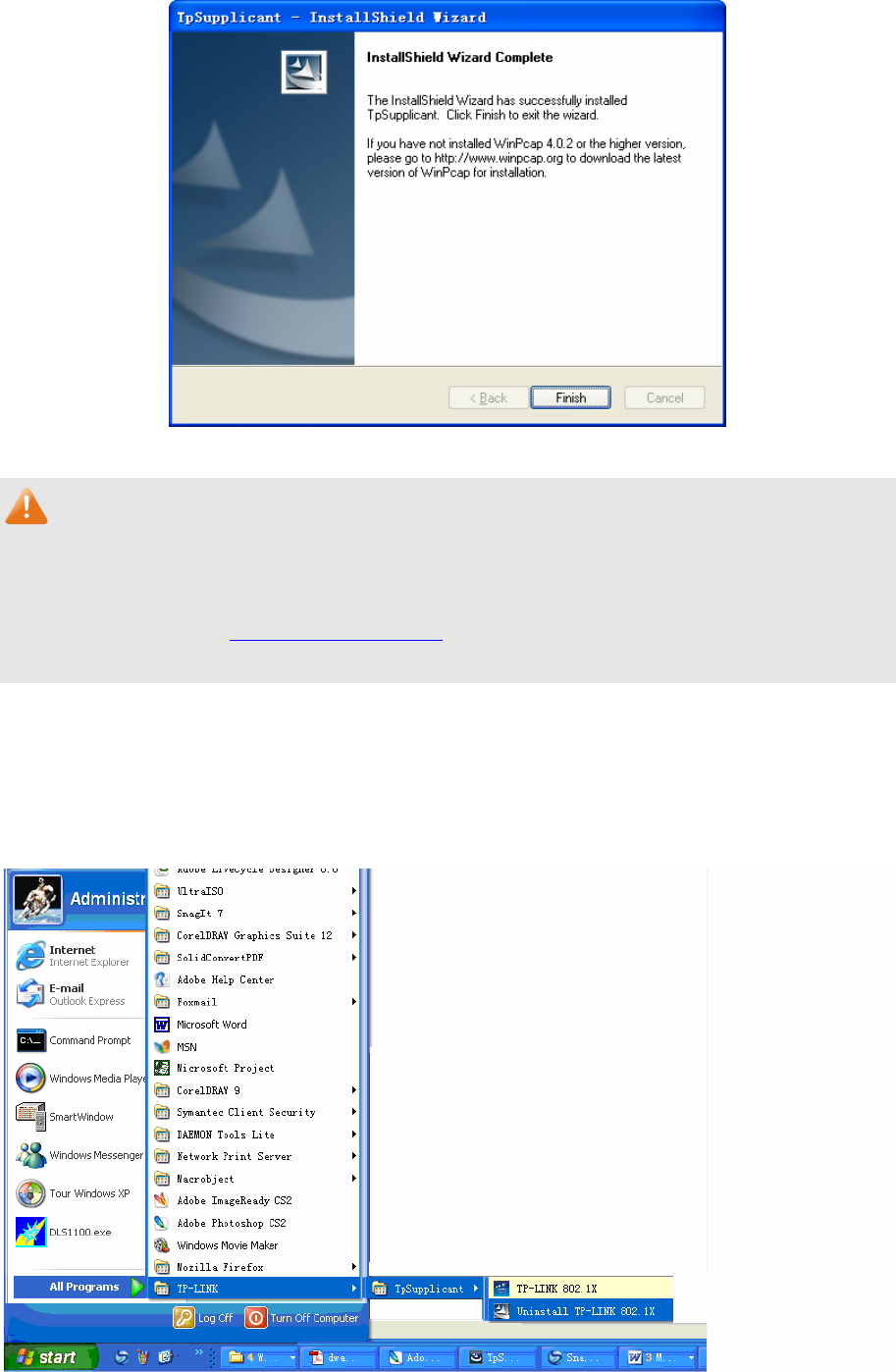

Figure C-7 InstallShield Wizard Complete

Note:

Please pay attention to the tips on the above screen. If you have not installed WinPcap 4.0.2 or

the higher version on your computer, the 802.1X Client Software TpSupplicant can not work. It’s

recommended to go to http://www.winpcap.org to download the latest version of WinPcap for

installation.

1.2 Uninstall Software

If you want to remove the TpSupplicant, please take the following steps:

1. On the Windows taskbar, click the Start button, point to All ProgramsTP-LINK

TpSupplicant, and then click Uninstall TP-LINK 802.1X, shown as the following figure.

Figure C-8 Preparing Setup
