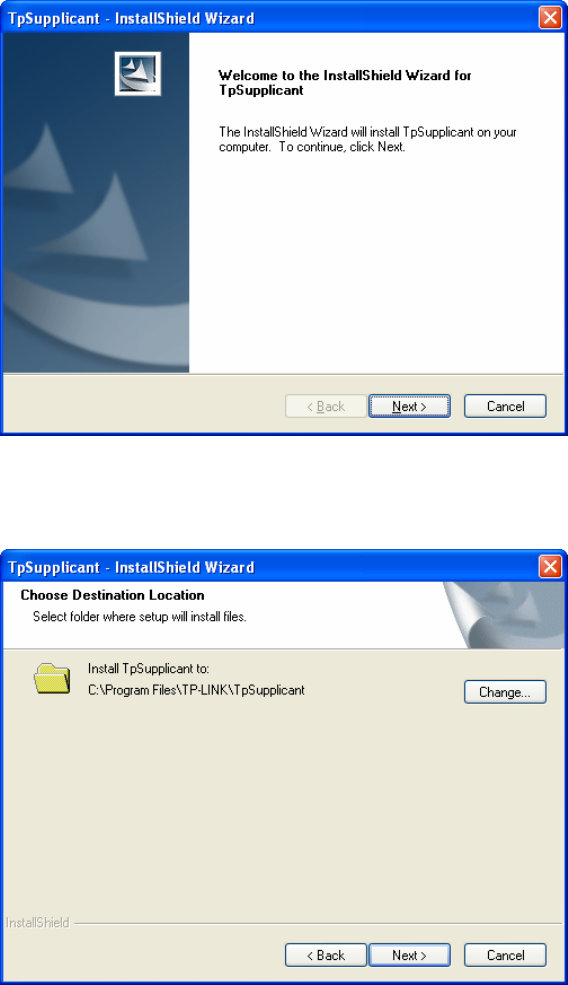

Figure C-3 Welcome to the InstallShield Wizard

4. To continue, choose the destination location for the installation files and click Next on the

following screen.

Figure C-4 Choose Destination Location

By default, the installation files are saved on the Program Files folder of system disk. Click the

Change button to modify the destination location proper to your need.

5. Till now, The Wizard is ready to begin the installation. Click Install to start the installation on

the following screen.

234
