232

5) The following TCP/IP Properties window will display and the IP Address tab is open on

this window by default.

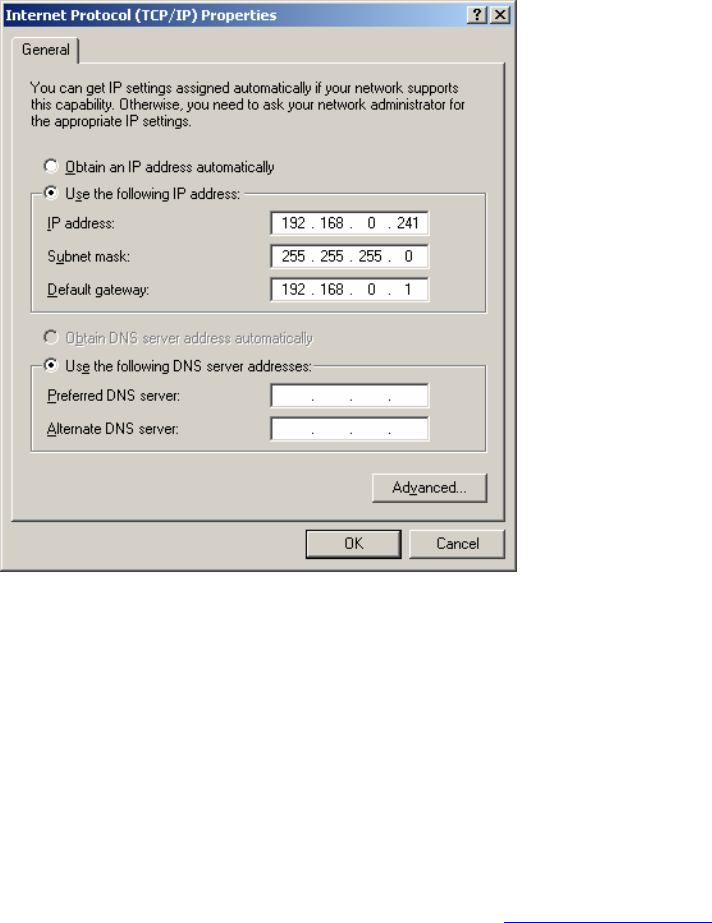

Figure B-3

6) Select Use the following IP address. And the following items will be available. If the switch's

IP address is 192.168.0.1, specify IP address as 192.168.0.x (x is from 2 to 254), and the

Subnet mask as 255.255.255.0.

Now:

Click OK to save your settings.

Return to CONTENTS
