Appendix B: Configuring the PCs

In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows 2000.

First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.

1. Configure TCP/IP component

1) On the Windows taskbar, click the Start button, and then click Control Panel.

2) Click the Network and Internet Connections icon, and then click on the Network

Connections tab in the appearing window.

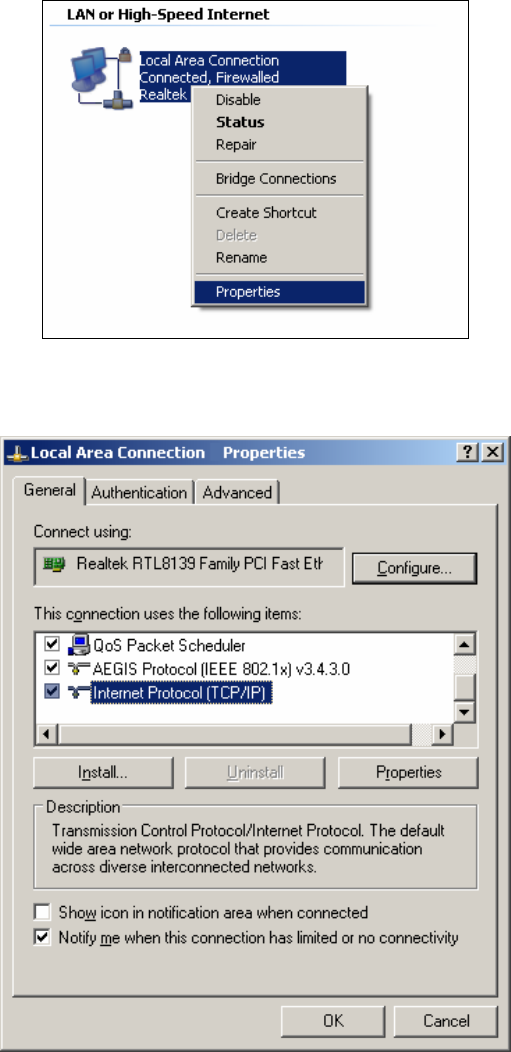

3) Right click the icon that showed below, select Properties on the prompt page.

Figure B-1

4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).

Figure B-2

231
