Choose the

menu System→System Info→Device Description to load the following page.

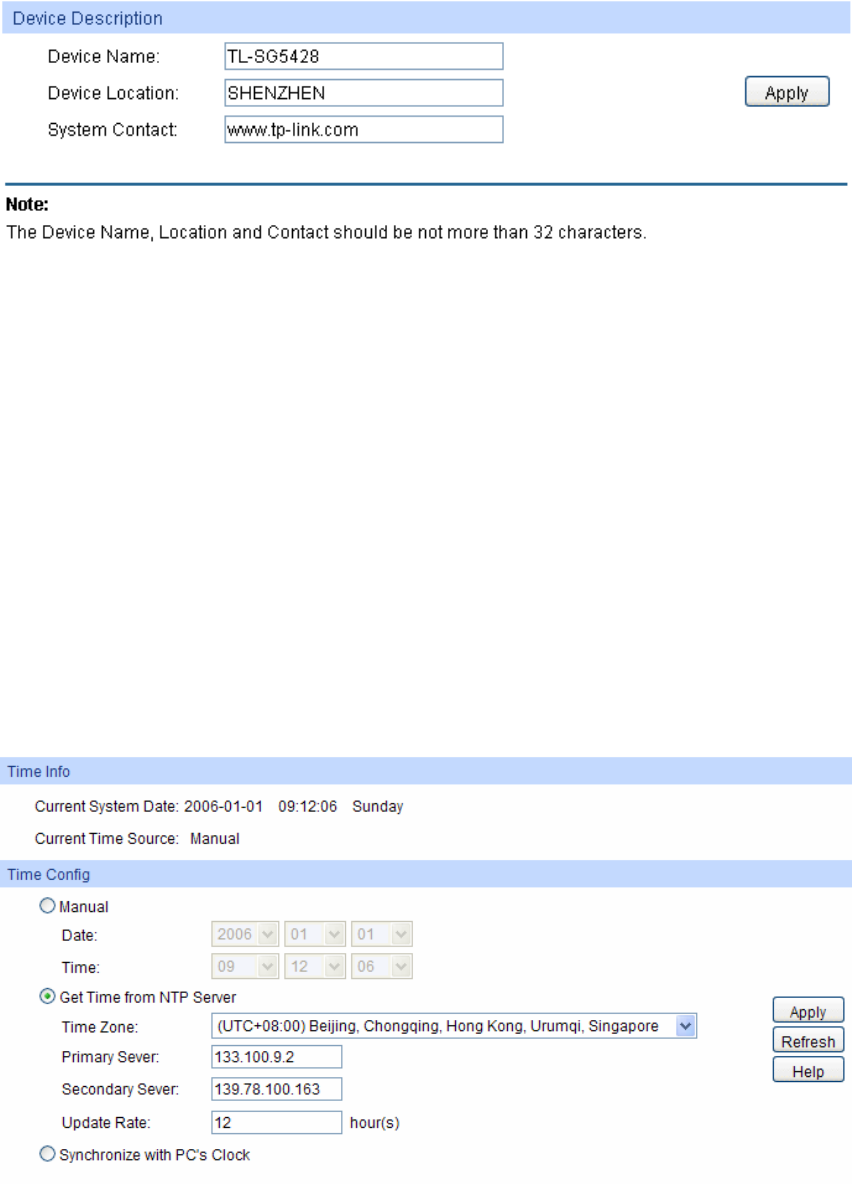

Figure 4-4 Device Description

The following entries are displayed on this screen:

 Device Description

Device Name: Enter the name of the switch.

Device Location: Enter the location of the switch.

System Contact: Enter your contact information.

4.1.3 System Time

System Time is the time displayed while the switch is running. On this page you can configure the

system time and the settings here will be used for other time-based functions like ACL.

You can manually set the system time, get UTC automatically if it has connected to a NTP server or

synchronize with PC’s clock as the system time.

Choose the menu System→System Info→System Time to load the following page.

Figure 4-5 System Time

The following entries are displayed on this screen:

 Time Info

Current System Date: Displays the current date and time of the switch.
