15.1.2 Memory Monitor

Choose the menu Maintenance→System Monitor→Memory Monitor to load the following page.

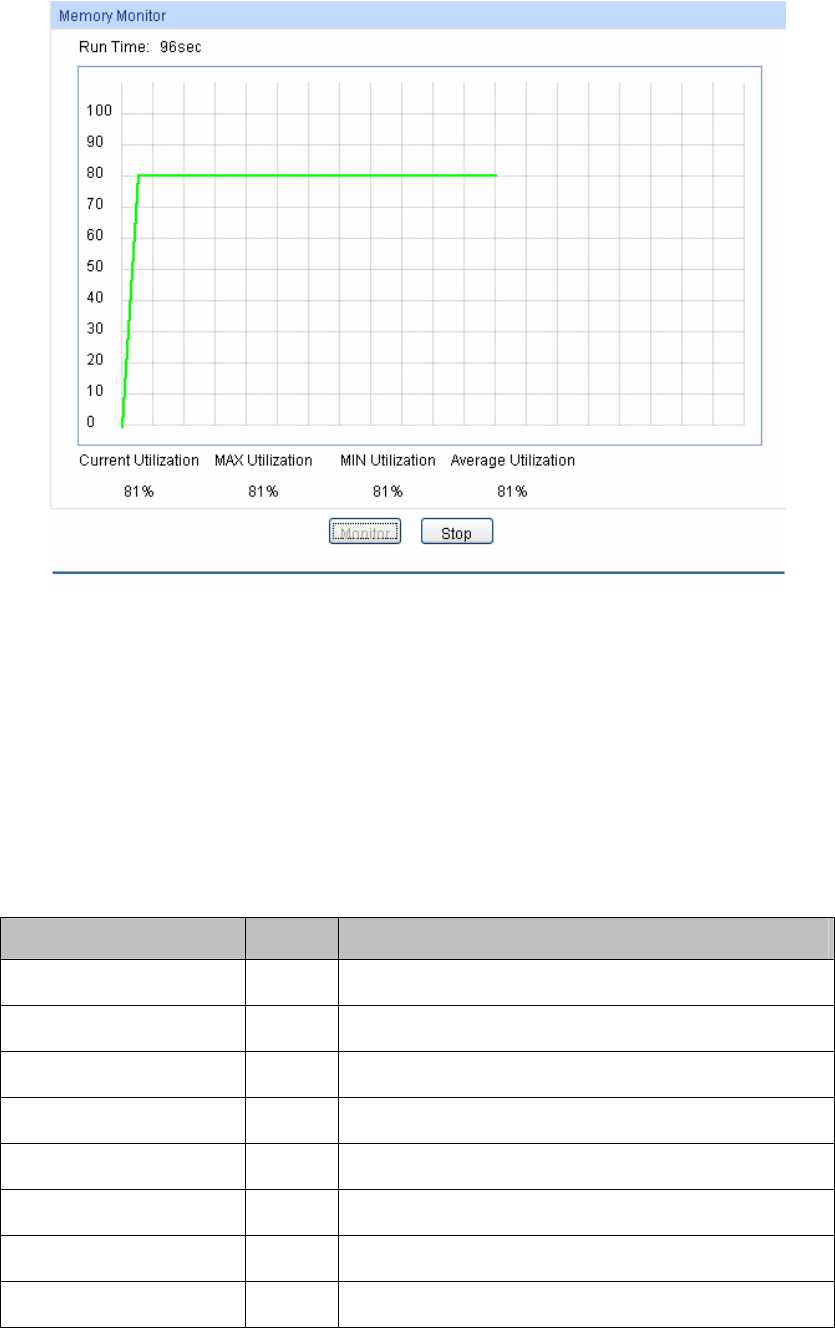

Figure 15-2 Memory Monitor

Click the Monitor button to enable the switch to monitor and display its Memory utilization rate

every four seconds.

15.2 Log

The Log system of switch can record, classify and manage the system information effectively,

providing powerful support for network administrator to monitor network operation and diagnose

malfunction.

The Logs of switch are classified into the following eight levels.

Severity

Level Description

emergencies 0

The system is unusable.

alerts 1

Action must be taken immediately.

critical 2

Critical conditions

errors 3

Error conditions

warnings 4

Warnings conditions

notifications 5

Normal but significant conditions

informational 6

Informational messages

debugging 7

Debug-level messages

Table 15-1 Log Level
