14.3.4 Cluster Topology
On this page you can see the whole cluster topology. Click the node switch to directly log on to the
corresponding Web management page for you to configure and manage this switch. Double-click
the node switch to view its detailed information.
Choose the menu Cluster→Cluster→Cluster Topology to load the following page.

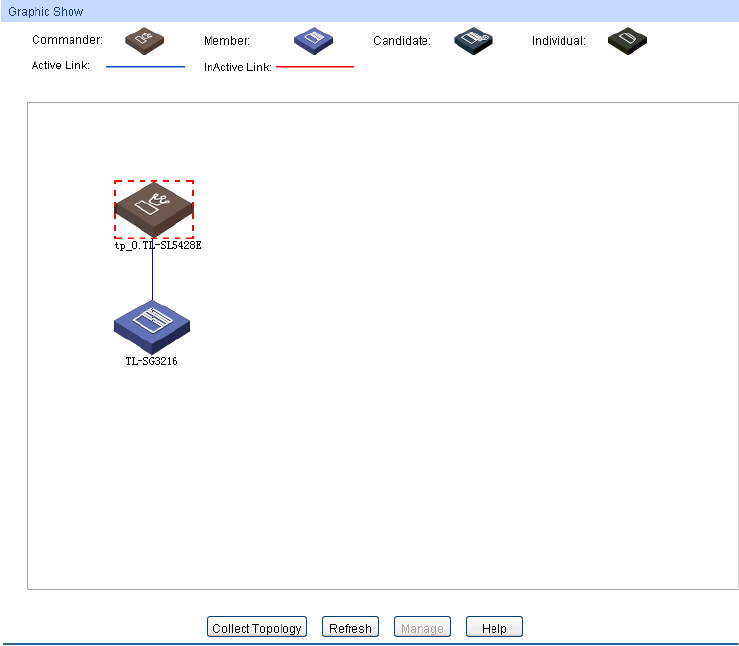

Figure 14-18 Collect Topology
The following entries are displayed on this screen:
 Graphic Show
Collect Topology: Click the Collect Topology button to display the cluster topology.
Manage: If the current device is the commander switch in the cluster and
the selected device is a member switch in the cluster, you can
click the Manage button to log on to Web management page of
the corresponding switch.
Global configuration procedure of the Cluster function:
Before configuring a cluster, you should make clear the role each device will play in the cluster in
advance and make sure the devices in the cluster can communicate with each other.
