 Current Role

Role: Displays the role the current switch plays in the cluster.

 Role Change

Candidate: Select this option to change the role of the switch to be candidate

switch.

 Cluster Config

Hold Time: Enter the time for the switch to keep the cluster information.

Interval Time: Enter the interval to send handshake packets.

 For a member switch, the following page is displayed.

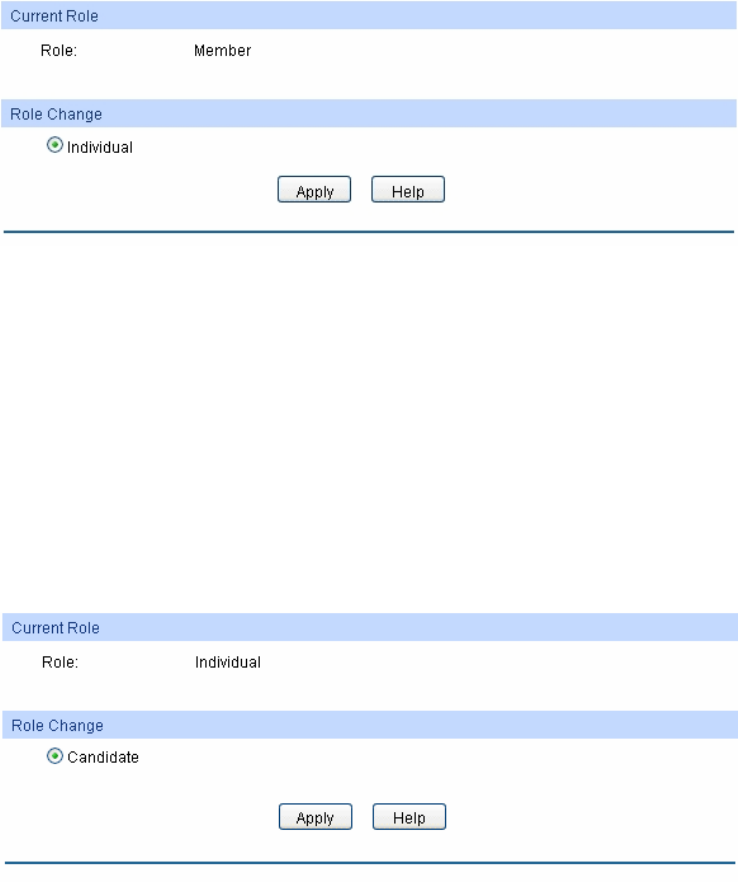

Figure 14-15 Cluster Configuration for Member Switch

The following entries are displayed on this screen:

 Current Role

Role: Displays the role the current switch plays in the cluster.

 Role Change

Individual: Select this option to change the role of the switch to be individual

switch.

 For an individual switch, the following page is displayed.

Figure 14-16 Cluster Configuration for Individual Switch

The following entries are displayed on this screen:

 Current Role
