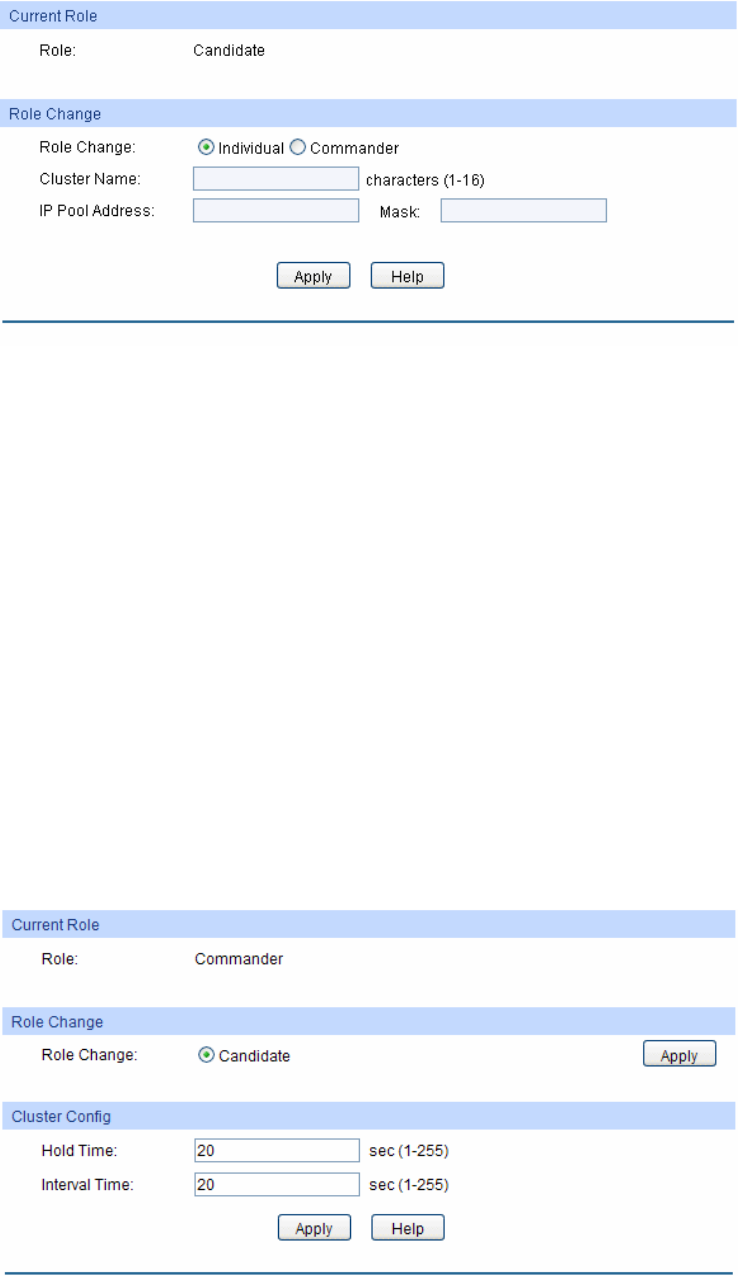

 For a candidate switch, the following page is displayed.

Figure 14-13 Cluster Configuration for Candidate Switch

The following entries are displayed on this screen:

 Current Role

Role: Displays the role the current switch plays in the cluster.

 Role Change

Individual: Select this option to change the role of the switch to be individual

switch.

Commander: Select this option to change the role of the switch to be

commander switch, and then configure the cluster:

 Cluster Name: Configure the name of the current cluster the

switch belongs to.

 IP Pool & Mask: Configure the private IP range of the member

switches in the cluster.

 For a commander switch, the following page is displayed.

Figure 14-14 Cluster Configuration for Commander Switch

The following entries are displayed on this screen:
