 For a commander switch，the following page is displayed:

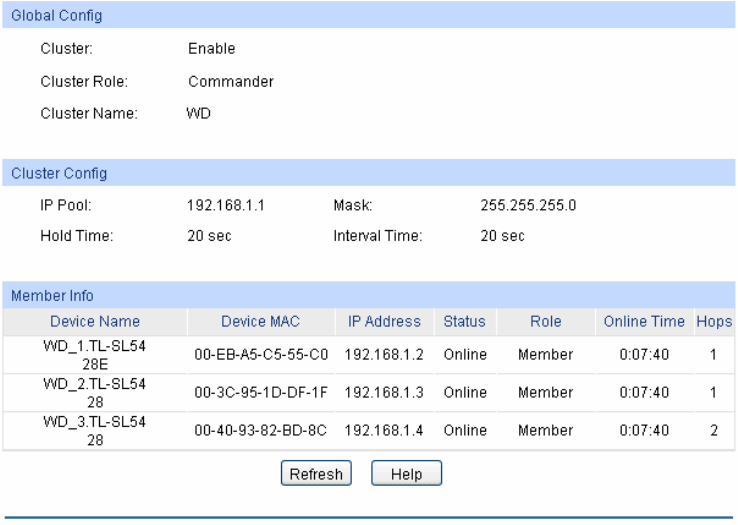

Figure 14-10 Cluster Summary for Commander Switch

The following entries are displayed on this screen:

 Global Config

Cluster: Displays the cluster status (enabled or disabled) of the switch.

Cluster Role: Displays the role the switch plays in the cluster.

Cluster Name: Displays the name of the current cluster the switch belongs to.

 Cluster Config

IP Pool & Mask: Displays the private IP range of the member switches in the

cluster.

Hold Time: Displays the time for the commander switch to keep the cluster

information.

Interval Time: Displays the interval to send handshake packets.

 Member Info

Device Name: Displays the description of the member switch.

Device MAC: Displays the MAC address of the member switch.

IP Address: Displays the IP address of the member switch used in the cluster.

Status: Displays the connection status of the member switch.

Role: Displays the role the switch plays currently.

Online Time: Displays the time when the member switch is added to the cluster.
