Hop

s: Displays the hop count from this device to the switch.

Neighbor Info: Click the Detail button to view the complete information of this

device and its neighbors.

Collect Topology: Click the Collect Topology button to collect NTDP information of

the switch so as to collect the latest network topology.

Click the Detail button to view the complete information of this device and its neighbors.

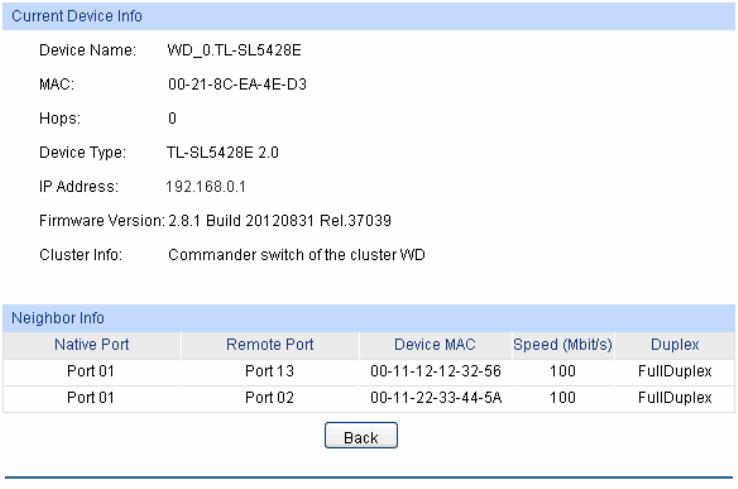

Figure 14-6 Information of the Current Device

14.2.2 NTDP Summary

On this page you can view the NTDP configuration.

Choose the menu Cluster→NTDP→NTDP Summary to load the following page.

204
