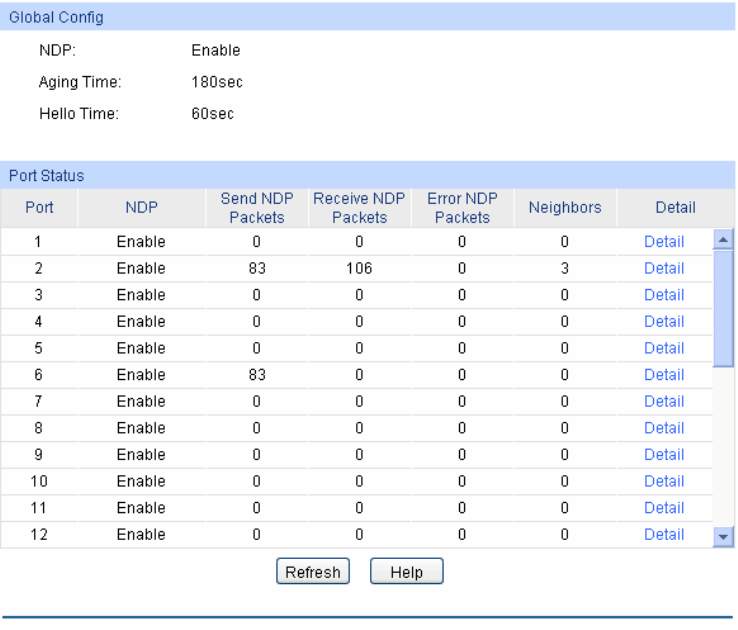

Figure 14-3 NDP Summary

The following entries are displayed on this screen:

 Global Config

NDP: Displays the global NDP status (enabled or disabled) for the

switch.

Aging Time: Displays the period for the neighbor switch to keep the NDP

packets from this switch.

Hello Time: Displays the interval to send NDP packets.

 Port Status

Port: Displays the port number of the switch.

NDP: Displays the NDP status (enabled or disabled) for the current port.

Send NDP Packets: Displays the count of currently sent NDP packets.

Receive NDP Packets: Displays the count of currently received NDP packets.

Error NDP Packets: Displays the count of currently received error NDP packets.

Neighbors: Displays the count of the connected neighbors.

Detail：

Click the Detail button to view the complete information collected

for the port.

14.1.3 NDP Config

On this page you can configure the NDP function for the switch.
