Chapter 4 System

The System module is mainly for system configuration of the switch, including four submenus:

System Info, User Management, System Tools and Access Security.

4.1 System Info

The System Info, mainly for basic properties configuration, can be implemented on System

Summary, Device Description, System Time, Daylight Saving Time and System IP pages.

4.1.1 System Summary

On this page you can view the port connection status and the system information.

The port status diagram shows the working status of RJ45 ports and SFP ports of the switch.

Choose the menu System→System Info→System Summary to load the following page.

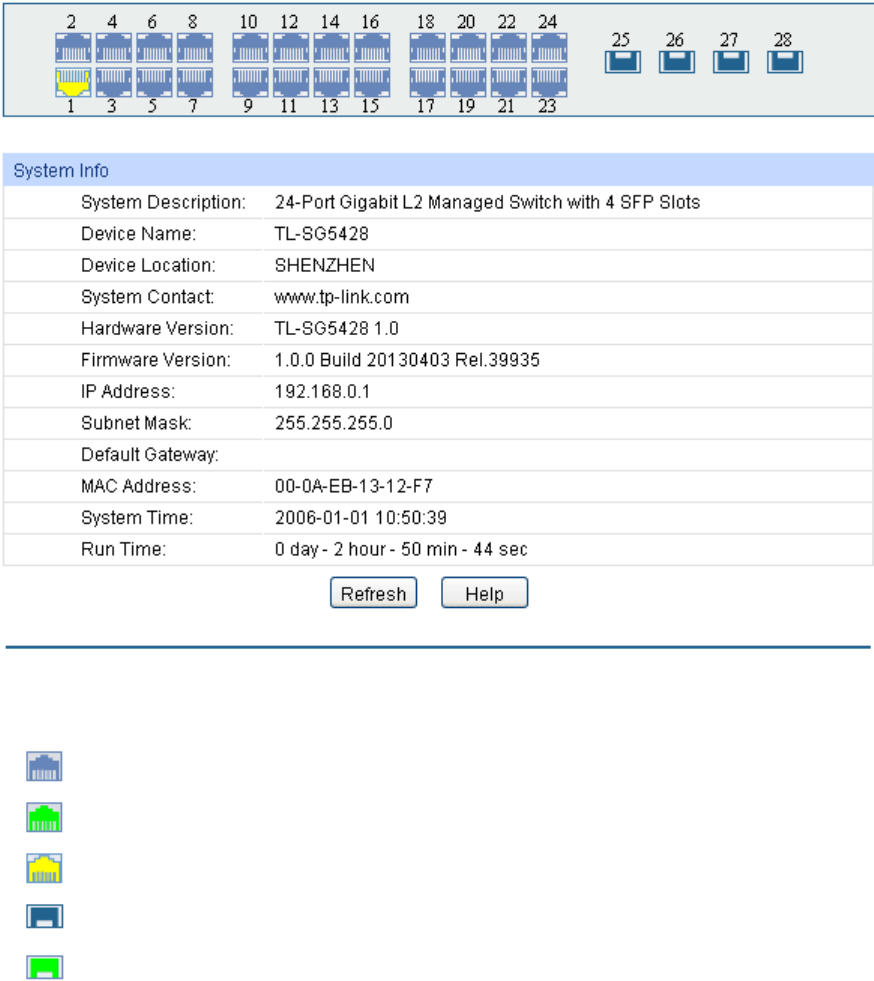

Figure 4-1 System Summary

 Port Status

Indicates the 1000Mbps port is not connected to a device.

Indicates the 1000Mbps port is at the speed of 1000Mbps.

Indicates the 1000Mbps port is at the speed of 10Mbps or 100Mbps.

Indicates the SFP port is not connected to a device.

Indicates the SFP port is at the speed of 1000Mbps.
