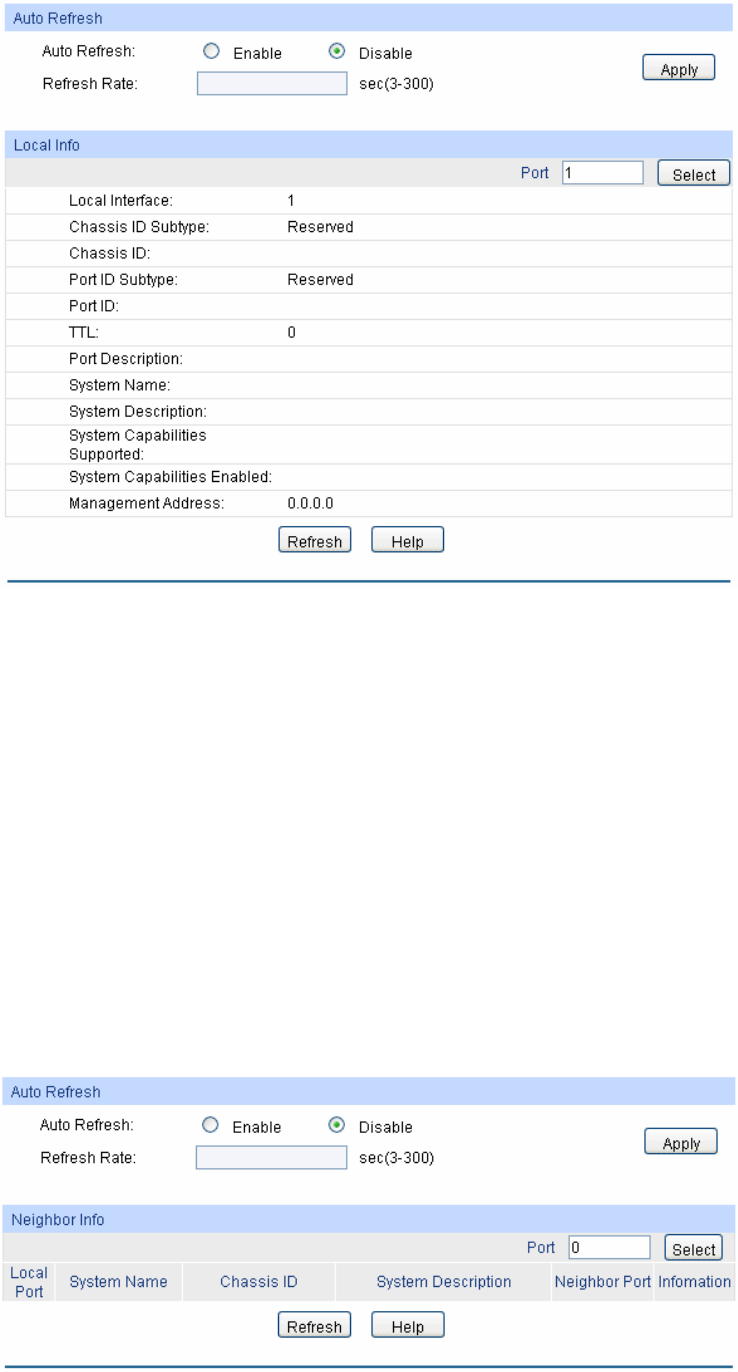

Figure 13-3 Local Information

The following entries are displayed on this screen:

 Auto Refresh

Auto Refresh: Enable/Disable the auto refresh function.

Refresh Rate: Specify the auto refresh rate.

 Local Info

Enter the desired port number and click Select to display the information of the corresponding

port.

13.2.2 Neighbor Info

On this page you can get the information of the neighbors.

Choose the menu LLDP→Device Info→Neighbor Info to load the following page.

Figure 13-4 Neighbor Information

194
