Supplicant T

imeout: Specify the maximum time for the switch to wait for the

response from supplicant before resending a request to

the supplicant.

Server Timeout: Specify the maximum time for the switch to wait for the

response from authentication server before resending a

request to the authentication server.

11.5.2 Port Config

On this page, you can configure the 802.1X features for the ports basing on the actual network.

Choose the menu Network Security→802.1X→Port Config to load the following page.

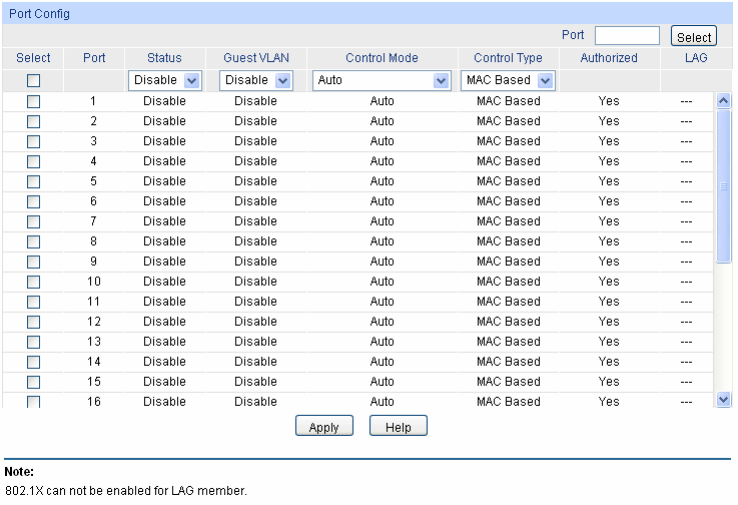

Figure 11-23 Port Config

The following entries are displayed on this screen:

 Port Config

Port Select: Click the Select button to quick-select the corresponding port

based on the port number you entered.

Select: Select your desired port for configuration. It is multi-optional.

Port: Displays the port number.

Status: Select Enable/Disable the 802.1X authentication feature for the

port.

Guest VLAN: Select Enable/Disable the Guest VLAN feature for the port.

Control Mode: Specify the Control Mode for the port.

 Auto: In this mode, the port will normally work only after

passing the 802.1X Authentication.

 Force-Authorized: In this mode, the port can work normally

without passing the 802.1X Authentication.

 Force-Unauthorized: In this mode, the port is forbidden

working for its fixed unauthorized status.
