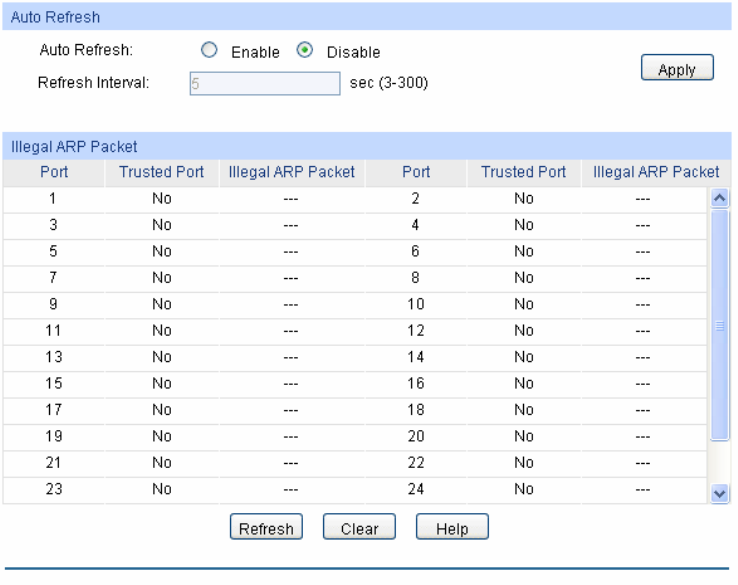

Figure 11-15 ARP Statistics

The following entries are displayed on this screen:

 Auto Refresh

Auto Refresh: Enable/Disable the Auto Refresh feature.

Refresh Interval: Specify the refresh interval to display the ARP Statistics.

 Illegal ARP Packet

Port: Displays the port number.

Trusted Port: Indicates the port is an ARP Trusted Port or not.

Illegal ARP Packet: Displays the number of the received illegal ARP packets.

11.3 IP Source Guard

IP Source Guard is to filter the IP packets based on the IP-MAC Binding entries. Only the packets

matched to the IP-MAC Binding rules can be processed, which can enhance the bandwidth utility.

Choose the menu Network Security→IP Source Guard to load the following page.
