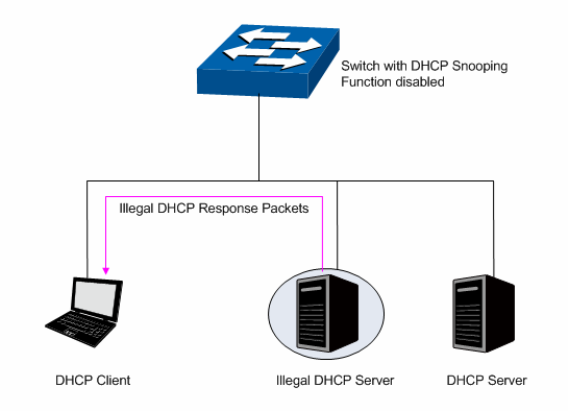

Figure 11-7 DHCP Cheating Attack Implementation Procedure

DHCP Snooping feature only allows the port connected to the DHCP Server as the trusted port to

forward DHCP packets and thereby ensures that users get proper IP addresses. DHCP Snooping

is to monitor the process of the Host obtaining the IP address from DHCP server, and record the IP

address, MAC address, VLAN and the connected Port number of the Host for automatic binding.

The bound entry can cooperate with the ARP Inspection, IP Source Guard and the other security

protection features. DHCP Snooping feature prevents the network from the DHCP Server

Cheating Attack by discarding the DHCP packets on the distrusted port, so as to enhance the

network security.

Choose the menu Network Security→IP-MAC Binding→DHCP Snooping to load the following

page.
