User Guide

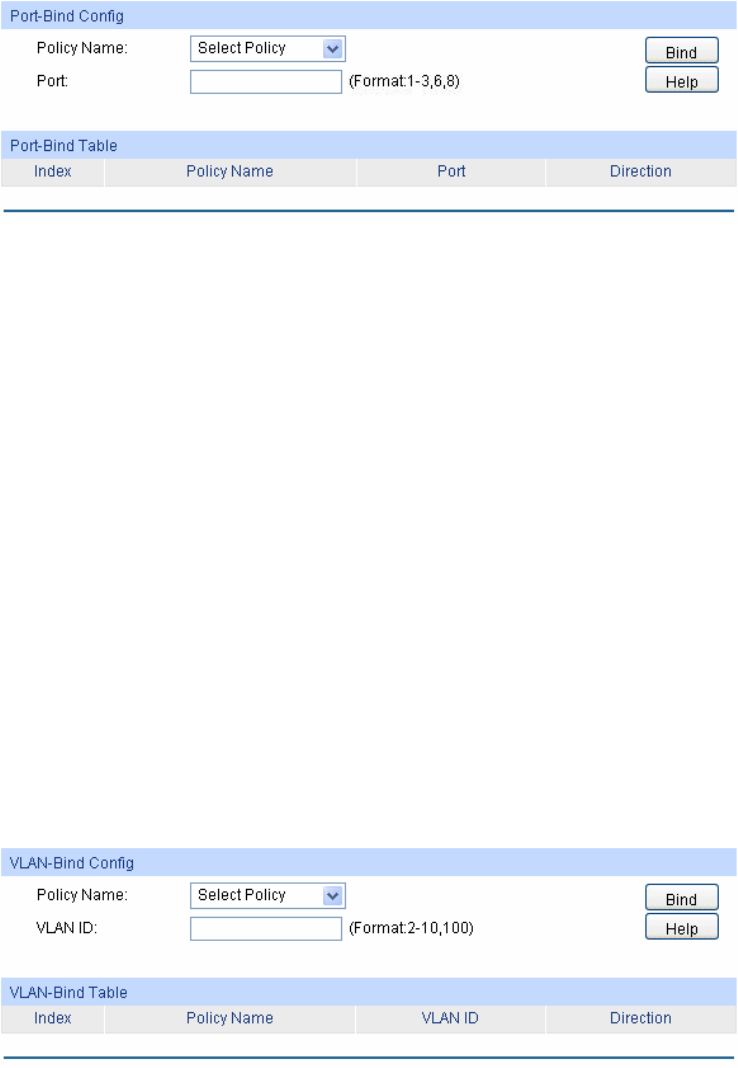

Figure 10-13 Bind the policy to the port
The following entries are displayed on this screen:
 Port-Bind Config
Policy Name: Select the name of the policy you want to bind.
Port: Enter the number of the port you want to bind.
 Port-Bind Table
Index: Displays the index of the binding policy.
Policy Name: Displays the name of the binding policy.
Port: Displays the number of the port bound to the corresponding policy.
Direction: Displays the binding direction.
10.4.3 VLAN Binding
On this page you can bind a policy to a VLAN.
Choose the menu ACL→Policy Binding→VLAN Binding to load the following page.
Figure10-14 Bind the policy to the VLAN
The following entries are displayed on this screen:
 VLAN-Bind Config
Policy Name: Select the name of the policy you want to bind.
VLAN ID: Enter the ID of the VLAN you want to bind.
 VLAN-Bind Table
Index: Displays the index of the binding policy.
Policy Name: Displays the name of the binding policy.
141
