Redirect
: Select Redirect to change the forwarding direction of the data packets
in the policy.
 Destination Port: Forward the data packets those match the
corresponding ACL to the specific port.
10.4 Policy Binding
Policy Binding function can have the policy take its effect on a specific port/VLAN. The policy will
take effect only when it is bound to a port/VLAN. In the same way, the port/VLAN will receive the
data packets and process them based on the policy only when the policy is bound to the
port/VLAN.
The Policy Binding can be implemented on Binding Table, Port Binding and VLAN Binding
pages.
10.4.1 Binding Table
On this page view the policy bound to port/VLAN.
Choose the menu ACL→Policy Binding→Binding Table to load the following page.

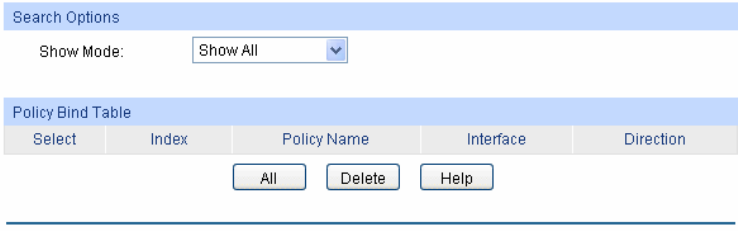

Figure 10-12 Binding Table
The following entries are displayed on this screen:
 Search Options
Show Mode: Select a show mode appropriate to your needs.
 Policy Bind Table
Select: Select the desired entry to delete the corresponding binding policy.
Index: Displays the index of the binding policy.
Policy Name: Displays the name of the binding policy.
Interface: Displays the port number or VLAN ID bound to the policy.
Direction: Displays the binding direction.
10.4.2 Port Binding
On this page you can bind a policy to a port.
Choose the menu ACL→Policy Binding→Port Binding to load the following page.
