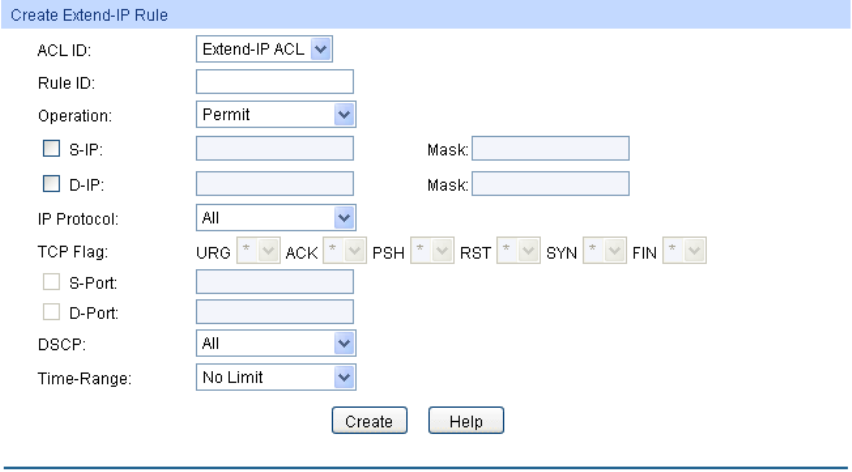

Figure10-8 Create Extend-IP Rule

The following entries are displayed on this screen:

 Create Extend-IP Rule

ACL ID: Select the desired Extend-IP ACL for configuration.

Rule ID: Enter the rule ID.

Operation: Select the operation for the switch to process packets which match the

rules.

 Permit: Forward packets.

 Deny: Discard Packets.

S-IP: Enter the source IP address contained in the rule.

D-IP: Enter the destination IP address contained in the rule.

Mask: Enter IP address mask. If it is set to 1, it must strictly match the

address.

IP Protocol: Select IP protocol contained in the rule.

TCP Flag：

Configure TCP flag when TCP is selected from the pull-down list of IP

Protocol.

S-Port: Configure TCP/IP source port contained in the rule when TCP/UDP is

selected from the pull-down list of IP Protocol.

D-Port: Configure TCP/IP destination port contained in the rule when

TCP/UDP is selected from the pull-down list of IP Protocol.

DSCP: Enter the DSCP information contained in the rule.

Time-Range: Select the time-range for the rule to take effect.
