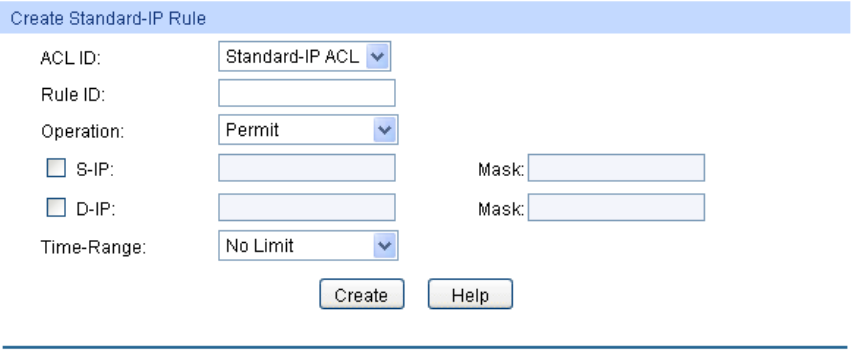

Figure10-7 Create Standard-IP Rule

The following entries are displayed on this screen:

 Create Standard-IP Rule

ACL ID: Select the desired Standard-IP ACL for configuration.

Rule ID: Enter the rule ID.

Operation: Select the operation for the switch to process packets which match the

rules.

 Permit: Forward packets.

 Deny: Discard Packets.

S-IP: Enter the source IP address contained in the rule.

D-IP: Enter the destination IP address contained in the rule.

Mask: Enter IP address mask. If it is set to 1, it must strictly match the

address.

Time-Range: Select the time-range for the rule to take effect.

10.2.5 Extend-IP ACL

Extend-IP ACLs analyze and process data packets based on a series of match conditions, which

can be the source IP addresses, destination IP addresses, IP protocol and other information of this

sort carried in the packets.

Choose the menu ACL→ACL Config→Extend-IP ACL to load the following page.
