10.1.2 Time-Range Create

On this page you can create time-ranges.

Choose the menu ACL→Time-Range→Time-Range Create to load the following page.

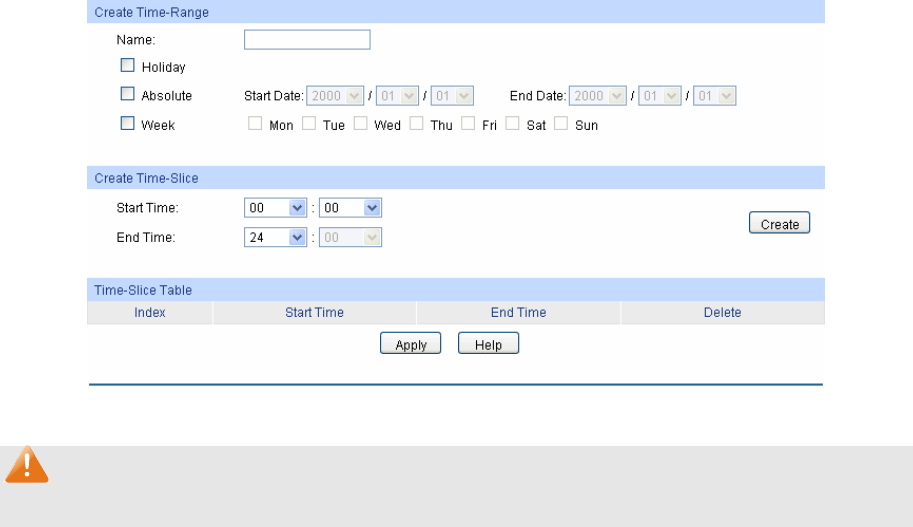

Figure 10-2 Time-Range Create

Note:

To successfully configure time-ranges, please firstly specify time-slices and then time-ranges.

The following entries are displayed on this screen:

 Create Time-Range

Name: Enter the name of the time-range for time identification.

Holiday: Select Holiday you set as a time-range. The ACL rule based on this

time-range takes effect only when the system time is within the holiday.

Absolute: Select Absolute to configure absolute time-range. The ACL rule based

on this time-range takes effect only when the system time is within the

absolute time-range.

Week: Select Week to configure week time-range. The ACL rule based on this

time-range takes effect only when the system time is within the week

time-range.

 Create Time-Slice

Start Time: Set the start time of the time-slice.

End Time: Set the end time of the time-slice.

 Time-Slice Table

Index: Displays the index of the time-slice.

Start Time: Displays the start time of the time-slice.

End Time: Displays the end time of the time-slice.

Delete: Click the Delete button to delete the corresponding time-slice.

132
