LAG: Displays the LAG number

which the port belongs to.

9.3.3 OUI Config

The switch supports OUI creation and adds the MAC address of the special voice device to the

OUI table of the switch. The switch determines whether a received packet is a voice packet by

checking its OUI address. The switch analyzes the received packets. If the packets recognized as

voice packets, the access port will be automatically added to the Voice VLAN.

Choose the menu QoS→Voice VLAN→OUI Config to load the following page.

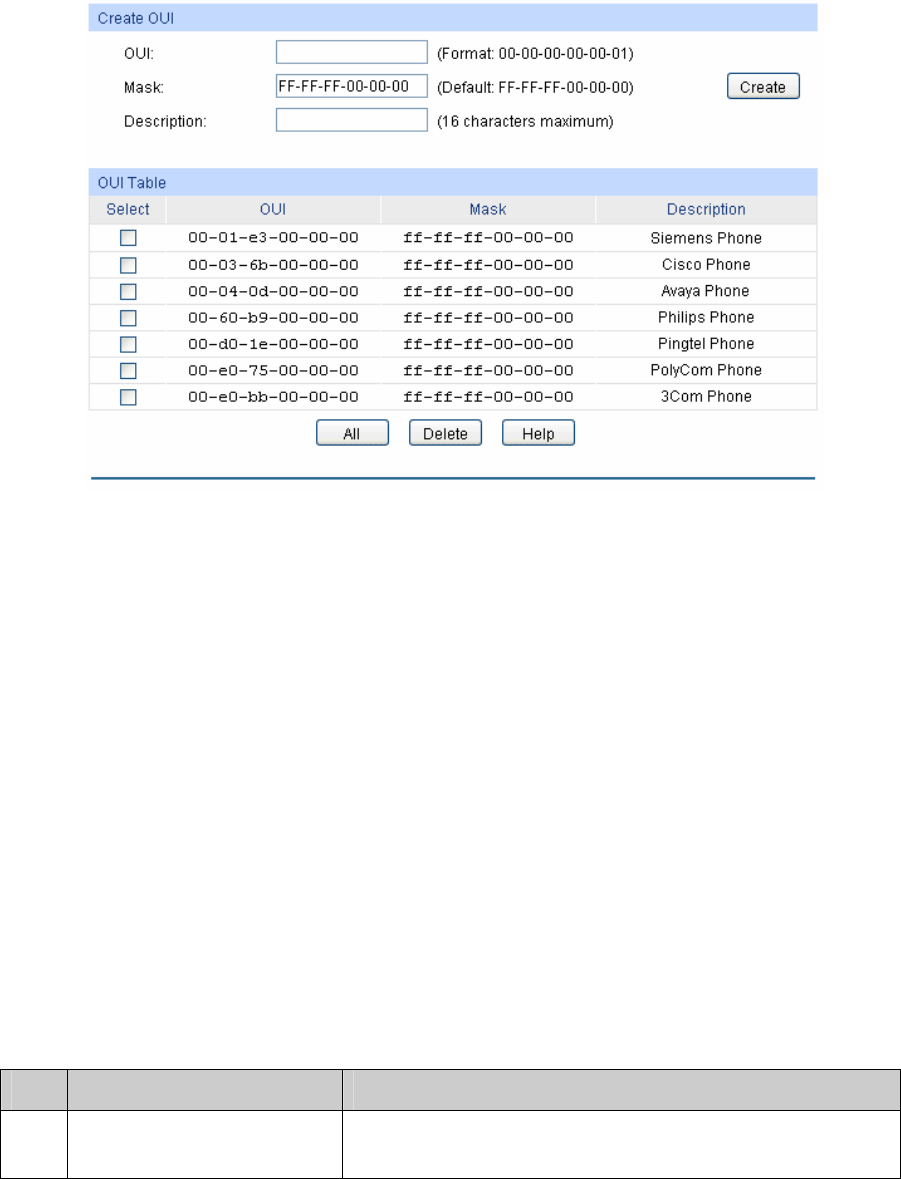

Figure 9-14 OUI Configuration

The following entries are displayed on this screen:

 Create OUI

OUI: Enter the OUI address of the voice device.

Mask: Enter the OUI address mask of the voice device.

Description: Give a description to the OUI for identification.

 OUI Table

Select: Select the desired entry to view the detailed information.

OUI: Displays the OUI address of the voice device.

Mask: Displays the OUI address mask of the voice device.

Description: Displays the description of the OUI.

Configuration Procedure of Voice VLAN:

Step Operation Description

1 Configure the link type of

the port

Required. On VLAN→802.1Q VLAN→Port Config page,

configure the link type of ports of the voice device.
