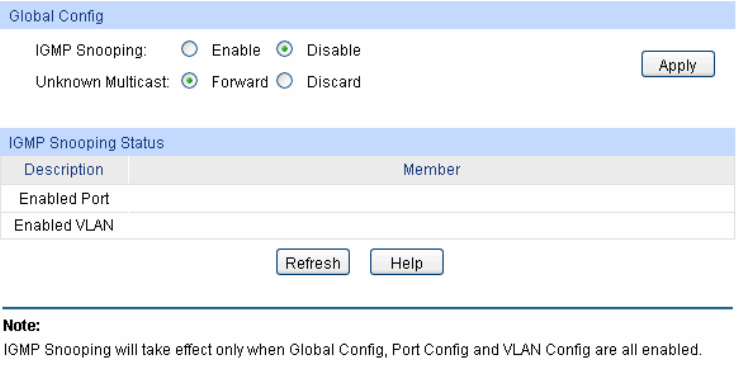

Figure 8-4 Basic Config

The following entries are displayed on this screen:

 Global Config

IGMP Snooping: Select Enable/Disable IGMP Snooping function globally on the

switch.

Unknown Multicast: Select the operation for the switch to process unknown multicast,

Forward or Discard.

 IGMP Snooping Status

Description: Displays IGMP Snooping status.

Member: Displays the member of the corresponding status.

8.1.2 Port Config

On this page you can configure the IGMP feature for ports of the switch.

Choose the menu Multicast→IGMP Snooping→Port Config to load the following page.
