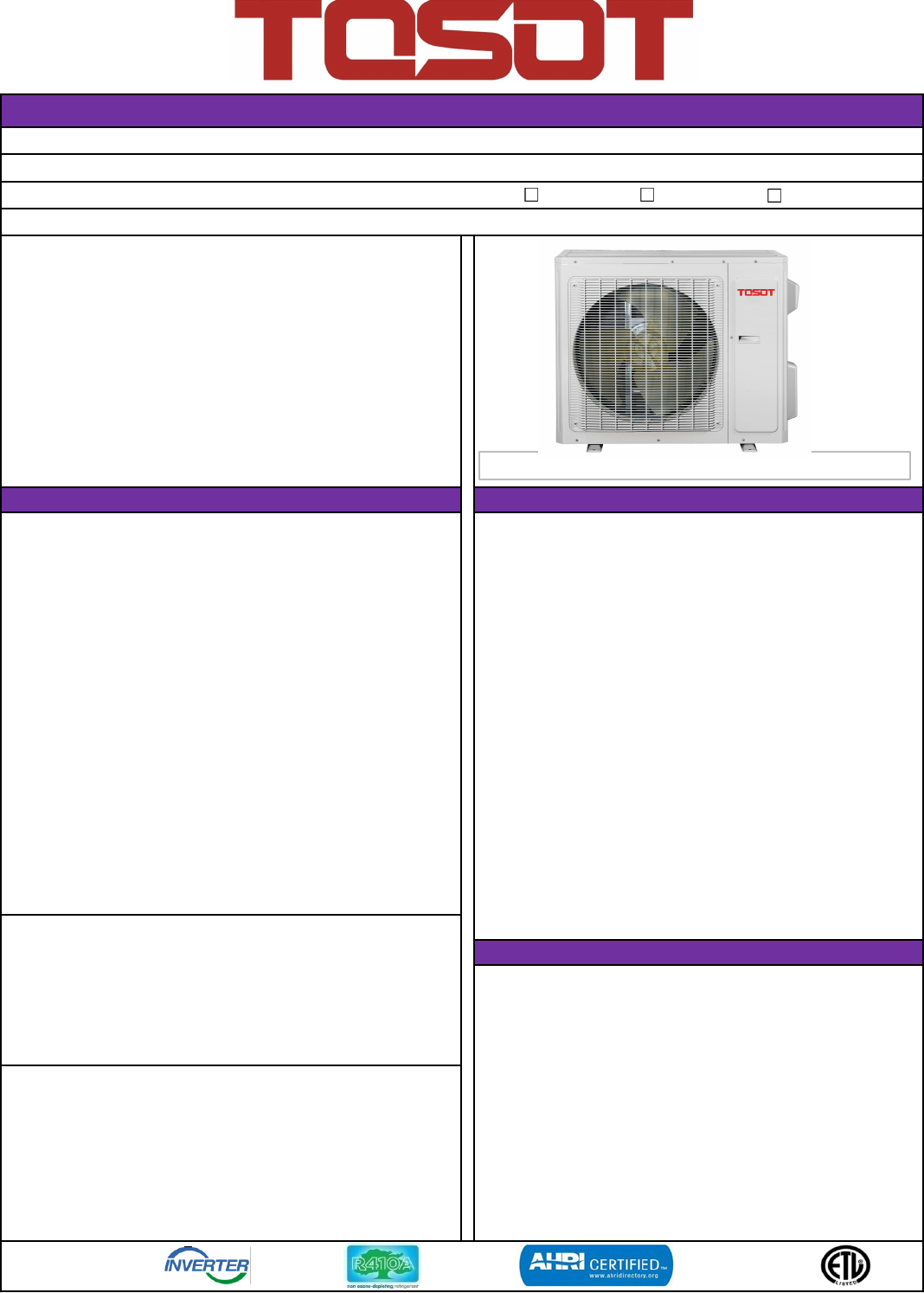

Submittal Data: TM18H4O

18,000 BTU/H Wall Mounted Heat- Pump System

Job Name Location Date

Purchaser Engineer

Submitted To For

Unit Designation Schedule No.

GENERAL FEATURES

-Dual Indoor Units (2-Port)

-EnergyStar Rated

-G10 DC Inverter Technology

-Quiet Operation - Both Indoor & Outdoor

-Acrylic Resin/Anti-Corrosion Coil Protection Inside & Out

-Intelligent Defrost

-Auto Restart on Power Outages

-Multi-point Diagnostics

-Limited 5 yr Parts Warranty, 7 yr Compressor Warranty

Non-Ducted Indoor Compressor Type DC Inverter Driven Rotary

Rated Cooling Capacity 18,000 BTUH RLA 10.8

Cooling Capacity (min-max) 7,000-21,000 BTUH

Rated Heating Capacity 19,000 BTUH Fan Motor Output Power 60 W

Heating Capacity (min-max) 8,530-22,600 BTUH FLA 0.6 A

SEER/EER 22.0/12.5 Air Flow (Max) 1883 CFM

HSPF/COP 11.0/3.7

Sound Pressure

Ducted Indoor Cooling 56 db(A)

Rated Cooling Capacity 18,000 BUTH Heating 56 db(A)

Cooling Capacity (min-max) 7,000-21,000 BUTH

Rated Heating Capacity 19,000 BTUH Dimensions & Weights

Heating Capacity (min-max) 8,530-22,600 BTUH Unit Dimensions (LxHxD) 38.0 x 27.6 x 15.6 -in

SEER/EER 16.0/11.5 Weight (Net/Shipping) 114.4/124.3 LBS

HSPF/COP 8.5/3.1

Min. Number of Indoor Units 2

Operating Range

Max. Number of Indoor Units 2

Cooling (min-max)

0 - 118°F

Refrigerant Type R410A

Heating (min-max)

Refrigerant Charge 56.4 oz

-18 - 48°C

-4 - 75°F

-20 - 24°C

Additional Charge Per Line Length 0.21-oz/ft

Connection Method Flared

Power Supply Factory Charge for Total Line Length 33-ft

Normal Operational Voltage

208/230 V, 1 Phase, 60 Hz Total Refrigerant Pipe Length 65-ft

Voltage Range

187 - 253 V Max Refrigerant Piping Length to any Indoor Unit 33-ft

Main Power Wire Size

12-2 AWG Min Refrigerant Piping Length to any Indoor Unit 10-ft

Interconnecting Cable Wire Size

14-4 AWG Max Elevation between Indoor Units 33-ft

MCA

16.0 A Max Lift from Outdoor to Indoor Unit 33-ft

MOCP/Breaker Size

25 A Max Drop from Outdoor to Indoor Unit 33-ft

Outdoor Unit Data

System Ratings

Refrigerant Piping Data

Reference

Approval

Construction

TOSOT Comfort 2017

Summary of content (8 pages)

PAGE 1
Submittal Data: TM18H4O Job Name Purchaser Submitted To Unit Designation 18,000 BTU/H Wall Mounted Heat- Pump System Location Engineer Reference For Schedule No.
PAGE 2
DIMENSIONAL SPECIFICATIONS TM18H4O Units: inch 18,000 BTUH MODEL Model #TM18H4O 18,000 BTUH 230V Suction/Gas Line Port Size Port A 3/8-in OD Flared Port B 3/8-in OD Flared Liquid Line Port Size Port A 1/4-in OD Flared Port B 1/4-in OD Flared Factory Supplied Piping Adapters Adapter P/N Qty 3/8 (F) to 1/2 (M) 6643008 2 MINIMUM SPACING REQUIREMENTS Units: inch (mm) Notes: 1. Recommended Interconnecting Cable Type Stranded Copper Conductors THHN 600V Unshielded Wire 2.
PAGE 3
TM18H4O INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS Units: inch Entry Level Series- 9,000 BTUH 230V 9,000 BTUH MODEL Liquid Line Valve 1/4-in OD Flared Suction/Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Rated Cooling (BtuH) Rated Heating (BtuH) Max. CFM Dehum (Pt/Hr) Min/Max Sound Power dB(A)** 9,000 9,500 318 1.7 28/43 Entry Level Series - 12,000 BTUH 230V Note: Size Refrigerant lines based on evaporator port sizes.
PAGE 4
INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS TM18H4O Units: inch 9,000 AND 12,000 BTUH MODELS 9,000 BTU Mid level Series - 9,000 BTUH 230V Mid Level Series - 12,000 BTUH 230V Liquid Line Valve Suction/Gas Line Valve Drain Connector 1/4-in OD Flared 3/8-in OD Flared 5/8-in OD 12,000 BTU Liquid Line Valve 1/4-in OD Flared Suction/Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Note: Size Refrigerant lines based on evaporator port sizes.
PAGE 5
Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved.
PAGE 6
Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved.
PAGE 7
TM18H4O OPERATIONAL PERFORMANCE SPECIFICATIONS COOLING CAPACITY (BTUH) Indoor Units Combinations 9K+9K 9K+12K Rated System Capacity (BtuH) 18,000 21,000 Indoor Unit A Indoor Unit B Indoor Unit C Indoor Unit D (BtuH) (BtuH) (BtuH) 9,000 9,000 NA 9,000 12,000 NA (BtuH) NA NA HEATING CAPACITY (BTUH) Indoor Units Combinations 9K+9K 9K+12K Rated System Capacity (BtuH) 19,000 22,500 Indoor Unit A Indoor Unit B Indoor Unit C Indoor Unit D (BtuH) (BtuH) (BtuH) 9,500 9,500 NA 9,500 13,000 NA (BtuH)
PAGE 8
TM18H4O EXTENDED RATINGS COOLING PERFORMANCE Indoor Ambient Temperature o o o DB 70 F (21 C) 75 F (24oC) 80oF (27oC) 90oF (32oC) WB 59oF (15oC) 63oF (17oC) 67oF (19oC) 73oF (23oC) TC (BtuH) SC (BtuH) Input Power (watts) TC (BtuH) SC (BtuH) Input Power (watts) TC (BtuH) SC (BtuH) Input Power (watts) TC (BtuH) SC (BtuH) Input Power (watts) 10,850 8,510 700 12,230 9,600 740 12,930 10,140 770 14,570 11,430 820 5 F （-15 C） 11,120 14oF（-10oC） 11,480 8,720 700 12,550 9,840
