IDENTIFYING INCLUDED COMPONENTS
Surveillix recorders come with a mouse, keyboard and selected software and cables. Identify the following components to make sure
everything has been properly included with the new DVR. If any of the following items are missing, contact the dealer to arrange a replacement.

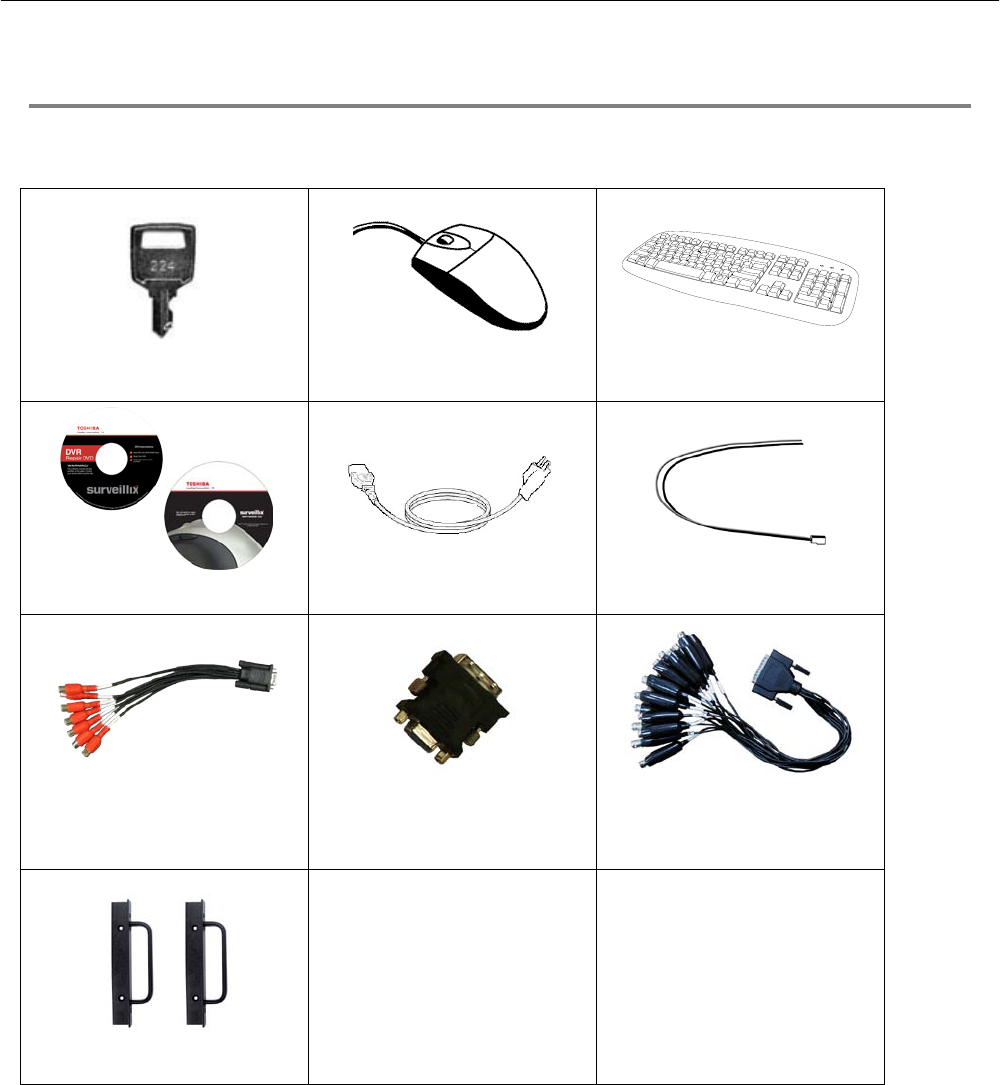

DVR Key Mouse Keyboard
Repair Disc/ Software Disc Power Adapter PTZ Adapter
8 Channel Audio Input Cable DVI-I to VGA adapter
BNC Connector Cable
(16 CH XVS or
32 CH DVSe only)
Rack Mount Kit
