15. GENERAL MAINTENANCE EO1-11154
15.1 Cleaning the Covers
15- 1
15. GENERAL MAINTENANCE
WARNING!
1. DO NOT POUR WATER directly onto the ECR, as this may cause electric shock or fire.
2. The Journal Take-up Motor becomes very hot while printing. To avoid getting burned, never
touch the Journal Take-up Motor.
3. Never touch the print head and around it just after printing. You may get burned as the print
head becomes very hot during printing.
4. Carefully close the receipt cover so as not to catch your fingers. You may get injured.
5. Do not touch the cutter portion as you may get injured.
CAUTION!
Never use an organic solvent like thinners or benzene for cleaning. Using such solvents may
discolour the cover.
15.1 Cleaning the Covers
Wipe the covers with a soft dry cloth slightly moistened with mild detergent. After using detergent for cleaning, be
sure to wipe it off with a slightly moistened cloth.
15.2 Removing Jammed Paper
1) Turn the power OFF and disconnect the power plug from the wall inlet.
2) Open the receipt cover or the journal cover.
3) Remove the jammed paper. DO NOT USE any sharp implement or tool as these will damage the printer.
4) Re-load the receipt roll. (Refer to Section 6.1 Installing/Replacing the Receipt/Journal Roll.)
15.3 When “VOLTAGE ERROR” is displayed...
When “VOLTAGE ERROR” is displayed, a hardware error including printer error could occur. In this case,
immediately disconnect the power plug from the wall inlet the contact your nearest TOSHIBA TEC representative.
15.4 Removing the Drawer

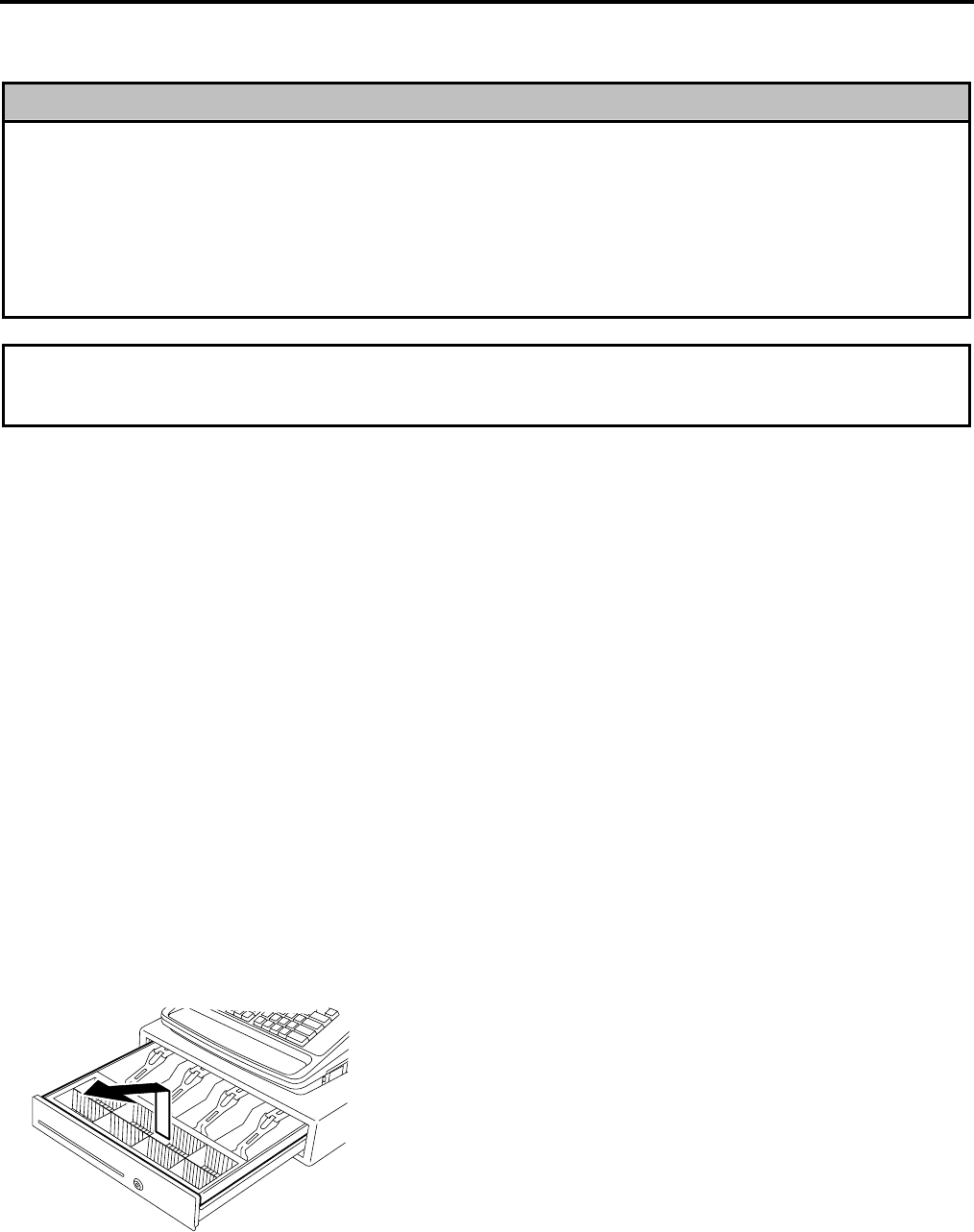

1. Open the drawer, then take the Money Case out.
