12. JOURNAL AND RECEIPT PAPER-END DETECTOR EO1-11154
12. JOURNAL AND RECEIPT PAPER-END DETECTOR
12- 1
12. JOURNAL AND RECEIPT PAPER-END DETECTOR
(1) This detects when either the journal or receipt paper is coming near the end. It is provided in order to prompt
the operator to replace the old paper roll with a new one.
(2) When the paper roll is out (or the paper has not been set properly), no key operation will be accepted and the
front display will indicate “PAPER END”.
(3) When a new paper roll is set, only the [C] key is allowed to operate. The error message “PAPER END” will be
cleared by the [C] key depression and normal key-in operations will be accepted. If any printing was
suspended, it will continue printing.
(4) If this detector senses a paper-end condition during printing, the printing will stop after the current line printing
is completed.
(5) If the [C] key is depressed in the paper-end condition, it will be ignored. The [C] key depression will be
effective to clear the error message only after the new paper roll is set.
(For further details, refer to Chapter 6.)

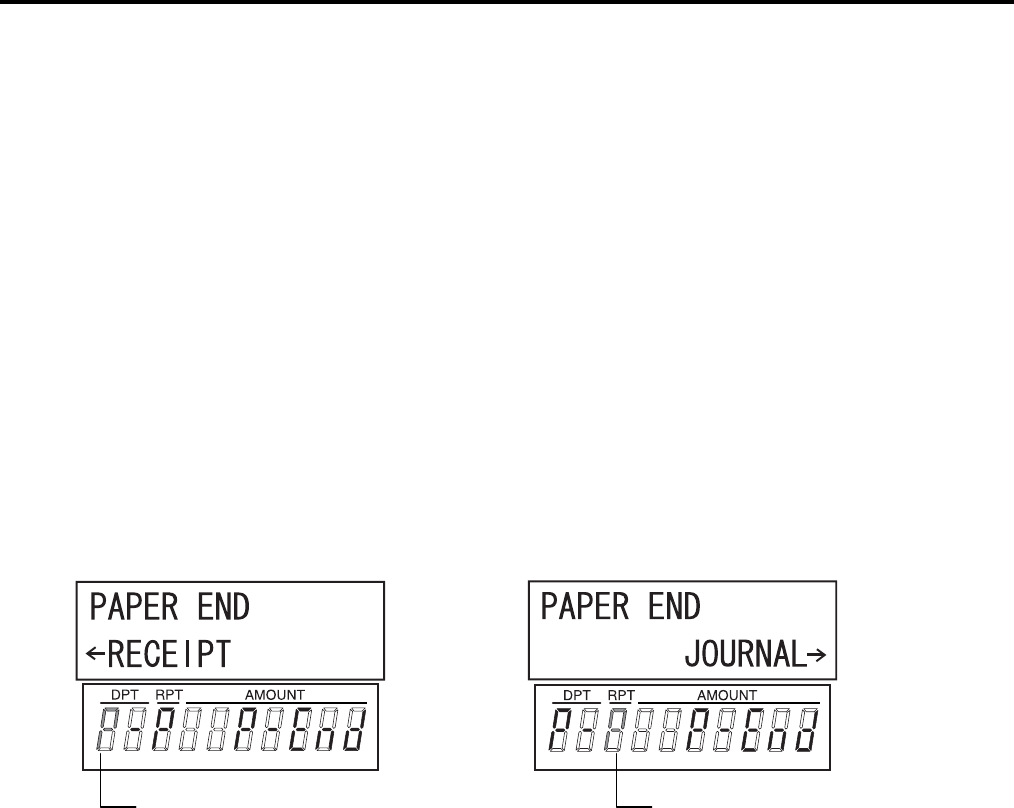

Receipt paper end Journal paper end
P blinks on the leftmost digit of the
10-digit 7-segment Numeric display.
P blinks on the third leftmost digit of the
10-digit 7-segment Numeric display.
