5. DISPLAY EO1-11154
5. DISPLAY
5- 1
5. DISPLAY
The operator display is located at the top of the ECR just above the keyboard.

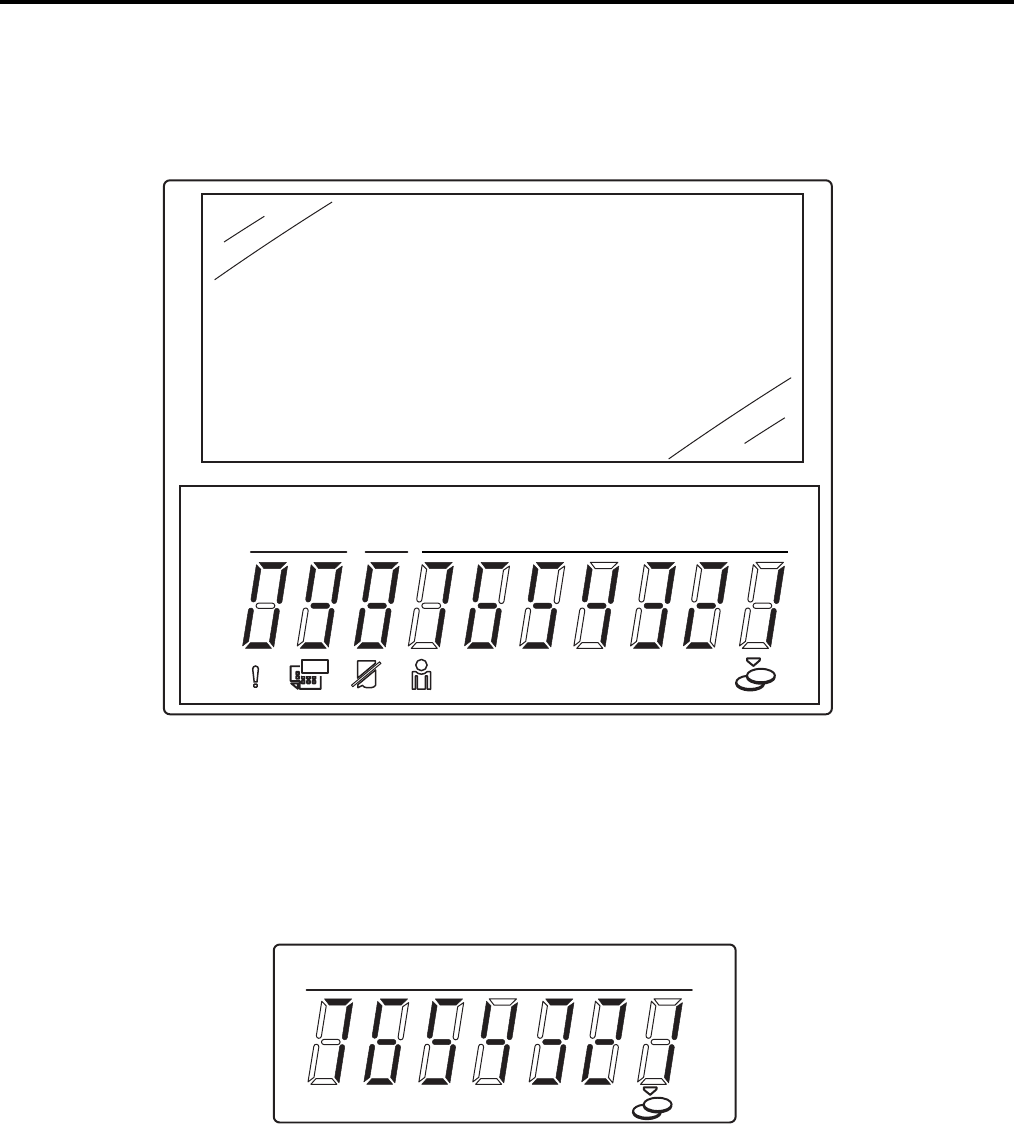

OPERATOR DISPLAY (Front Display)
LCD display
10-digit 7-segment
Numeric display
The customer display can be moved horizontally, and thus is fully adjustable according to the position of the
customer.
CUSTOMER DISPLAY (Rear Display)
TL ST
AMOUNT
TL ST
DPT RPT
AMOUNT
(
()
)
PC
