Push the drawer of the External Large Capacity Feeder straight into

the equipment until it comes to a stop.

• Close the drawer completely. The elevator tray automatically moves up to the paper feeding position.

Be careful not to let your fingers be caught when closing the drawer. This could injure you.

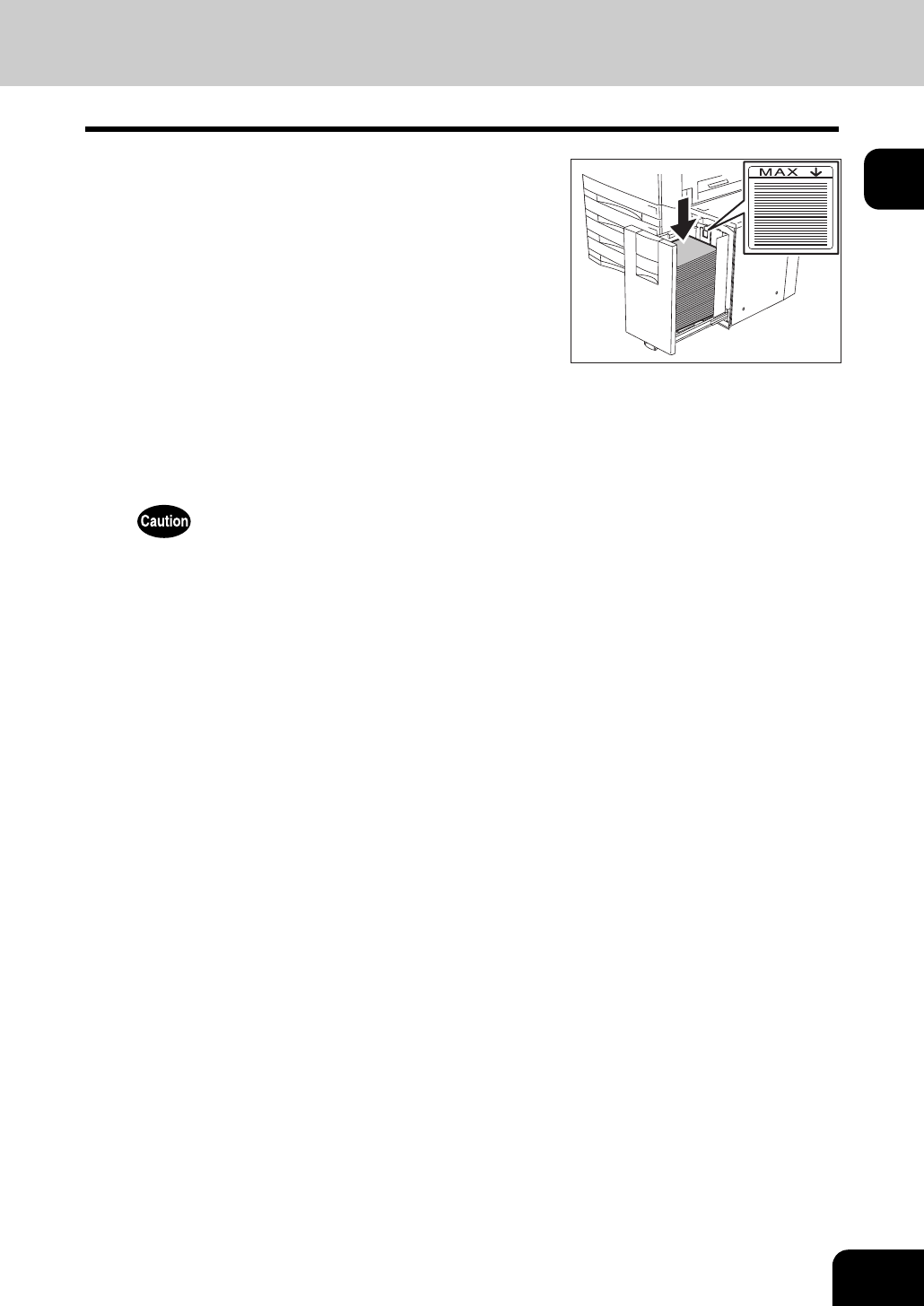

Place the paper on the elevator tray.

• Set the paper with its copy side up.

• For the maximum number of sheets that can be set, see  P.37

“Copy paper types and sizes”.

• Fan and jog the paper well before placing it on the elevator tray.

Set the paper aligned with the rear guide.

• If there is a gap between the set paper and the rear guide, the

copied image may tilt.

• Be sure that the paper height does not exceed the line indicated

on the rear guide.

• Do not use creased, folded, wrinkled or damp sheets of paper.
