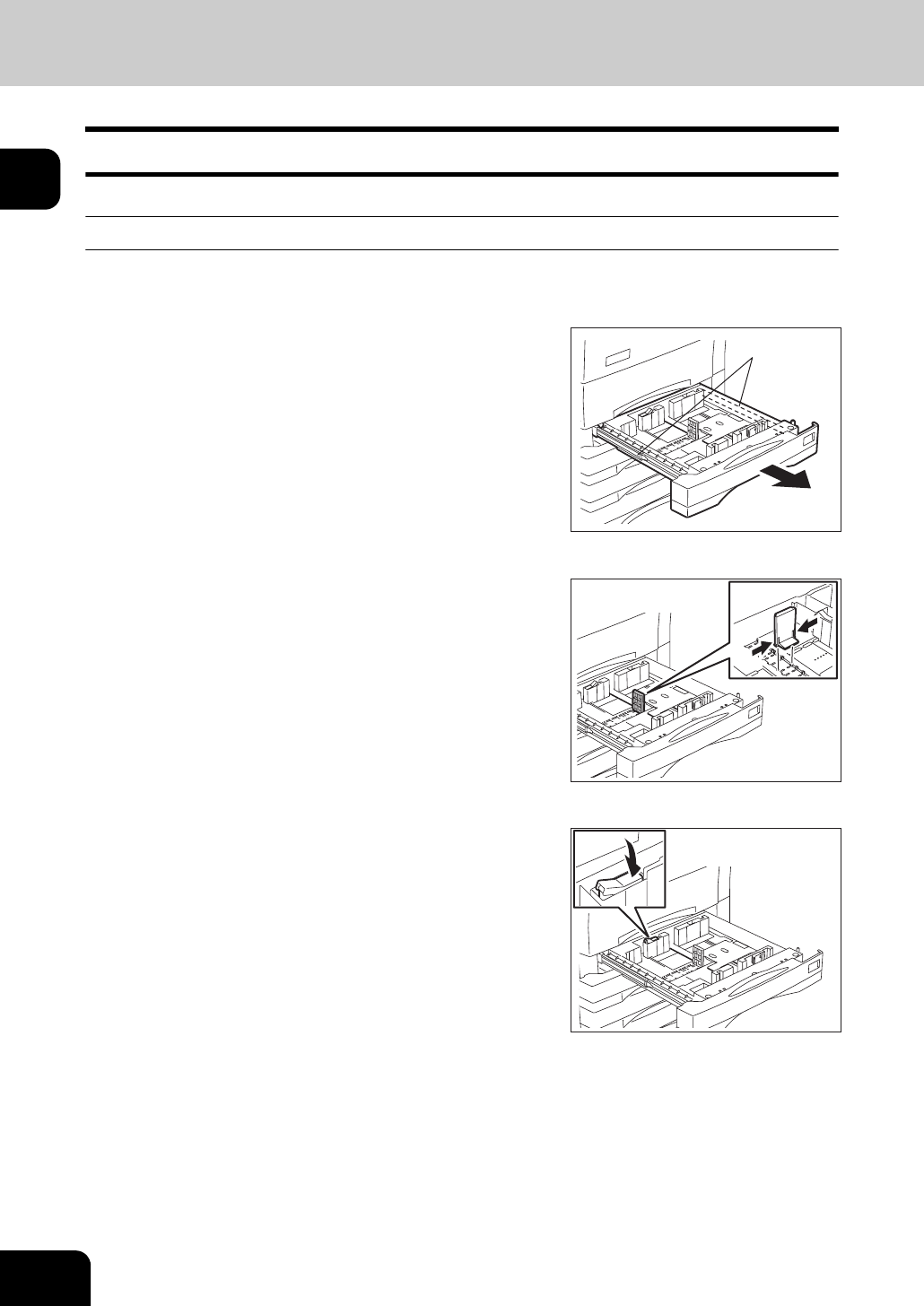

1.BEFORE USING EQUIPMENT

4.Setting Copy Paper (Cont.)

Setting copy paper (size change) / Setting the drawer for special uses

When you set or add copy paper in the drawer, follow the procedure below.

Placing paper in the drawer

Turn the power on.

Pull out the drawer carefully until it

comes to a stop.

A: Slide rail

• Be careful not to touch the slide rail of the drawer.

Push the lower part of the end guide in

the direction of the arrow to remove it,

then reinstall it at the desired paper size

(indicated on the bottom inner surface on

the drawer).

Push the arrow part (right side) of the

side guide to unlock it.
